5-6 Chapter 5 Recording/Playback
Chapter 5 Recording/Playback
5-3 Preparing for Playback

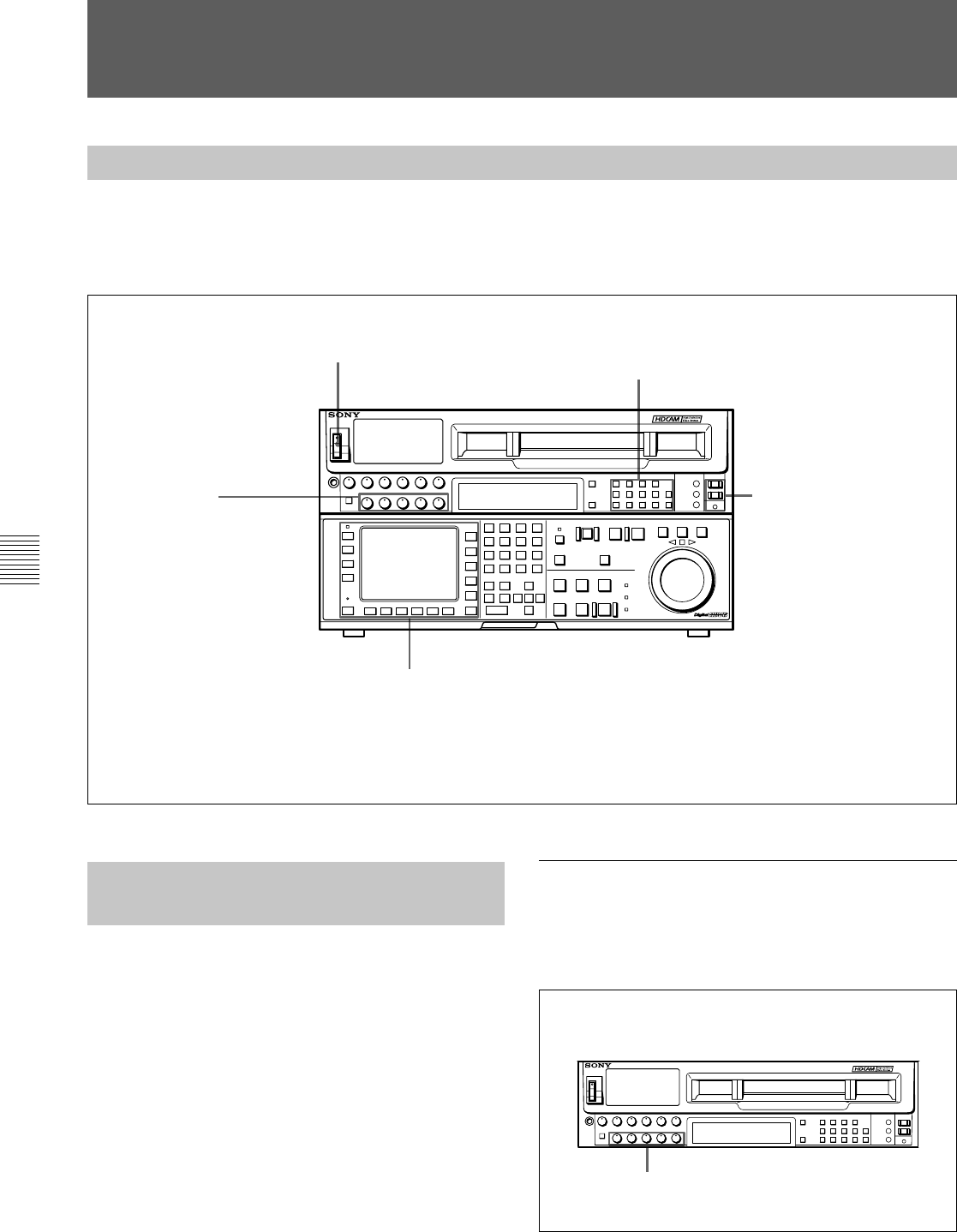

5-3-1 Setting Switches and Menus
Before starting playback, set the switches and menus
as shown in the diagram below.
For details, refer to the pages indicated in the parentheses.
5-3-2 Adjusting the Audio
Playback Level
If the PB level controls on the upper control panel are
pushed in, audio signals are output at the factory-set
level (+4 dBm output for signals recorded at the 0 dB
reference level).
For details on changing the factory-set reference output
level, refer to the supplied Maintenance Manual.
To adjust the audio playback level
manually
Pull and rotate the PB level control for the
corresponding channel.
To adjust the audio playback level manually
PB level controls
Setting switches and menus
DIGITAL VIDEO CASSETTE RECORDER HDW-F500
AUDIO INPUT/MONITOR SELECT buttons:
Audio channels to be monitored (page 5-2)
POWER switch: ON
PB level controls:
Playback level
REMOTE buttons: None of
these buttons light up.
Menu settings
[F1] (TIMER SEL) button in the TC menu: Select the time data to be displayed.
[F6] (TCG SOURCE) button in the TC menu: int-LTC, int-VITC, ext-LTC, ext-VITC (see page 4-25)
[F7] (TCG MODE) button in the TC menu: regene, prst, auto (see page 4-25)
