Chapter 4 Menu Settings 4-63
Chapter 4 Menu Settings
4-7-1 VTR SETUP Menu
All menu items required for setting up the VTR
operating conditions are displayed in the scrollable
VTR SETUP menu.
Items which are frequently used can be registered in
the PF1/2 menus. Those items that can be registered in
a PF menu are displayed in the scrollable PF1&2
ASSIGN menu.
For details on the VTR SETUP menu items, see the
Appendix “Menu List” on page A-15.
For details on registering items to the PF1/2 menus, see
Section 4-1-3, “Registering Items to the PF1/2 Menus” on
page 4-3.

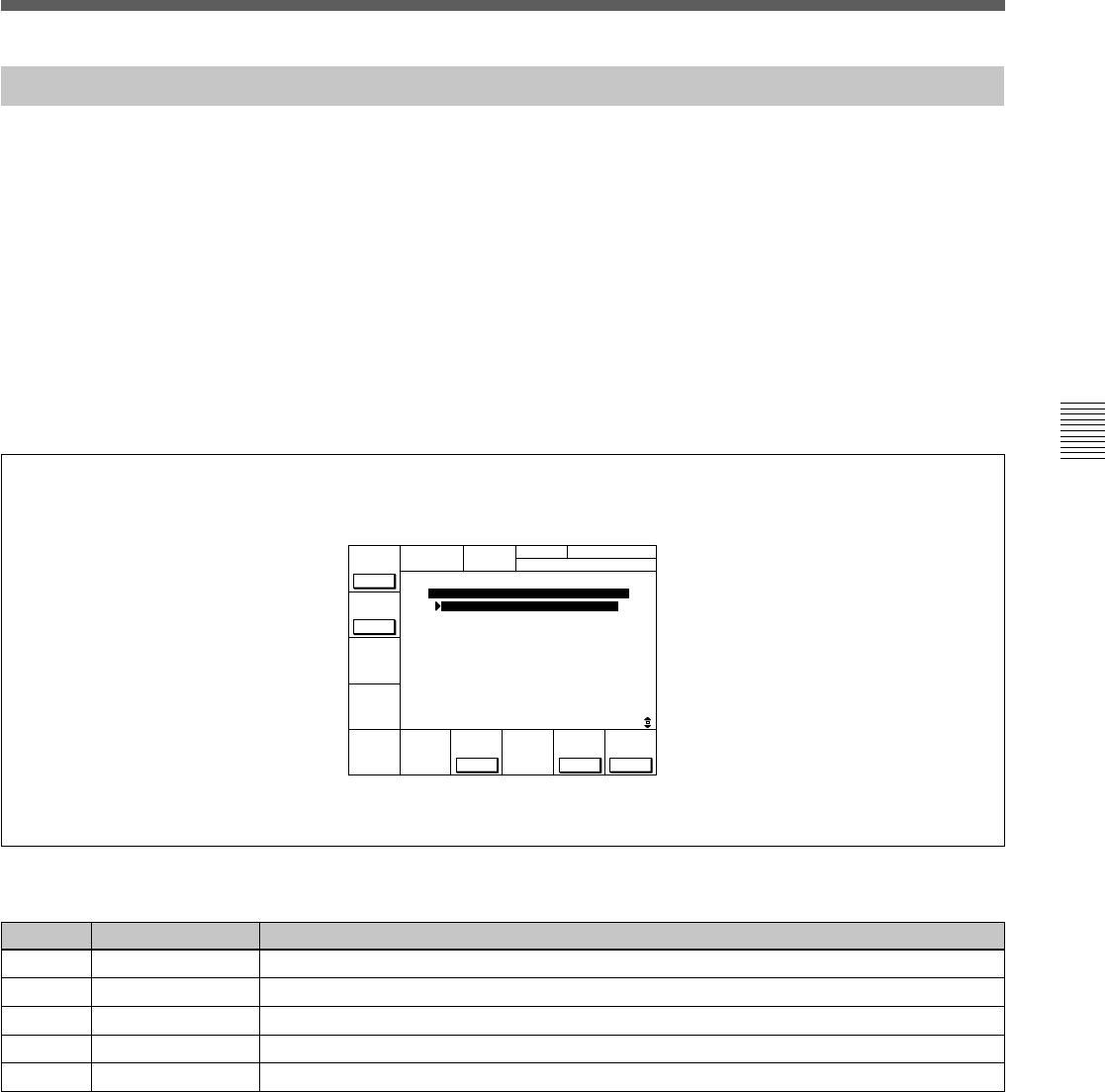

VTR SETUP menu display
VTR SETUP menu
To activate the VTR SETUP menu
Press the SET UP button, then press the [F6] (VTR
SETUP) button.
HOURS COUNTER
H02:DRUM HOURS - 10
H01:OPE HOURS - 90
H03:TAPE HOURS - 8
H04:THRED COUNT - 122
H12:DRUM HOURS r - 21
H13:TAPE HOURS r - 10
H14:THRED COUNT r- 93
002:CONFI - off
003:REC INH - off
004:CAP LOCK - 4FD
NEXT
CÅTEG
PREV
CÅTEG
CHÅNGE
DÅTÅ
SÅVE/
EXIT
TCR 00:00:00:00
VTR SETUP
CANCEL
CH.COND
001:PRE READ - off
Button Indication Function
[F1] PREV CATEG Moves to the beginning of the previous category.
[F2] NEXT CATEG Moves to the beginning of the next category.
[F7] CHANGE DATA Changes the setting.
[F9] CANCEL Cancels the setting operation.
[F10] SAVE/EXIT Sets the value and exits the VTR SETUP menu.
