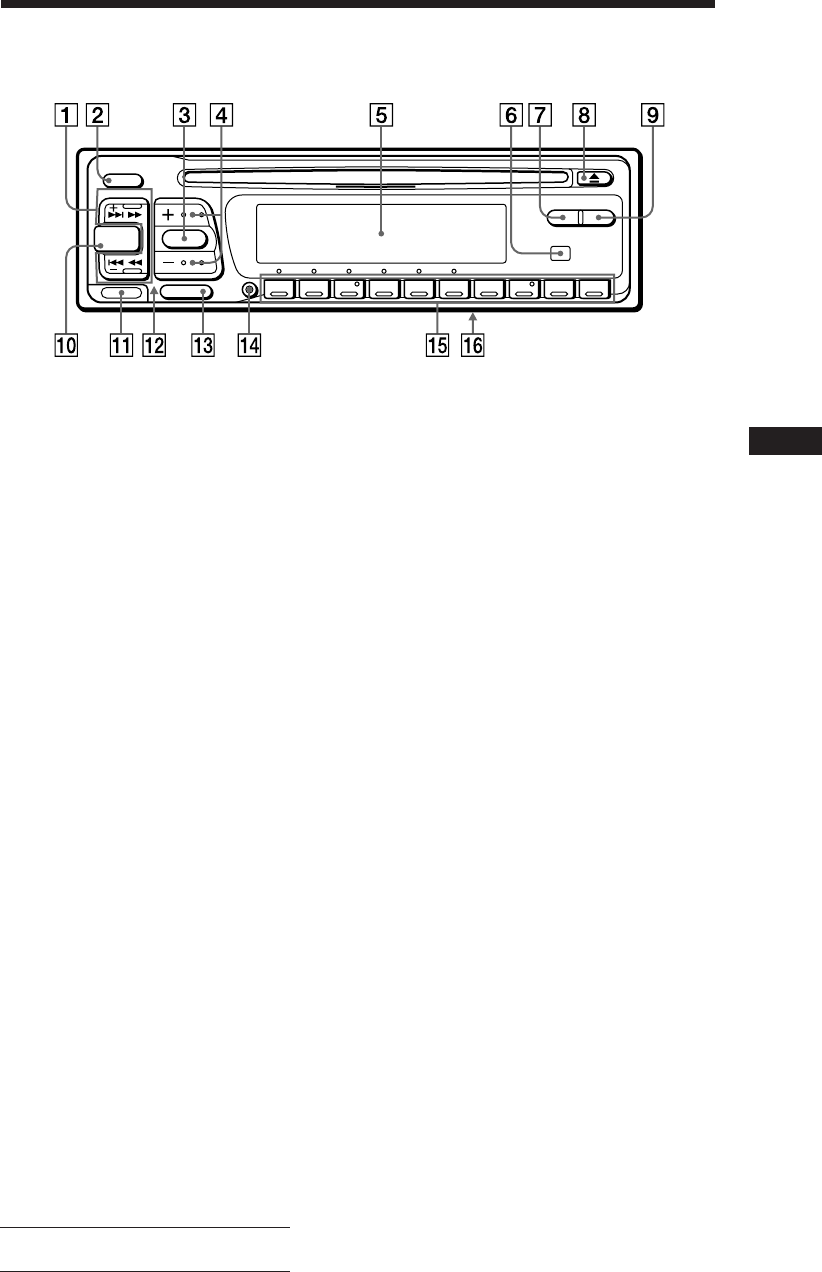

Location of controls
!™ Reset button (located on the front side
of the unit hidden by the front panel) 4
!£ MUTE button 15
!¢ SHIFT button
BTM 8, 21
PLAY MODE 6, 7, 8, 9, 11, 16, 17, 18,
19, 20, 21
SET UP 5, 15, 16
!∞ During radio/TV reception:
Number buttons 8, 9, 22
During CD/MD playback:
Direct disc selection buttons 16
!§ POWER SELECT switch (located on the
bottom of the unit)
See “POWER SELECT Switch” in the
installation/Connections manual.
Refer to the pages for details.
1 SEEK/AMS (seek/Automatic Music
Sensor/manual search) button 5, 6, 7, 8,
9, 16, 17, 18, 20, 21, 22
2 OFF button 4, 5
3 SOUND button 10, 11, 12, 13, 15
4 (+) (–) (volume/surround menu/
listening position/sub output level/bass/
treble/balance/fader control) buttons 5,
9, 10, 11, 12, 13, 15, 20
5 Display window
6 Receptor for optional wireless remote
7 DSPL (display mode change) button 5,
9, 10, 16, 20
8 6 (eject) button 5
9 LIST button
Disc Memo 19, 20
List-up 10, 20, 22
Station Memo 9, 10
!º SOURCE (source select) button 5, 8, 9,
10, 12, 13, 16, 17, 20, 21, 22, 23
!¡ RELEASE (front panel release) button 4,
24
Additional Information
OFF
RELEASE
MUTE
SHIFT
DSPL LIST
SOURCE SOUND
12345678910
SEEK/AMS
