Manual

Enclosure Specifications
Compatibility Compatible with Mac, Windows, and Linux computers with eSATA host controller
Interface Connectors eSATA
Drives Supported 3 & 1.5 Gb/s Serial ATA
Data Transfer Speed Up to 220MB/s, depending on drives used and configuration
OS Support Platform independent
Power Supply 100–240V, 50–60Hz
Operating Temperature 32˚ C to 95˚ F (0˚ C to 35˚ C)
Dimensions (WxDxH) 17 x 16.5 x 1.75 in. (43,8 x 41,9 x 4,4cm)
Weight (with drives) 21.1 lbs. (9,6 kg)
Package Contents Disk enclosure, four 3.5" drive modules, four adhesive-backed feet, power cord, 2-meter locking eSATA cable,
User’s Guide
Fusion R400P Specifications and Features
2

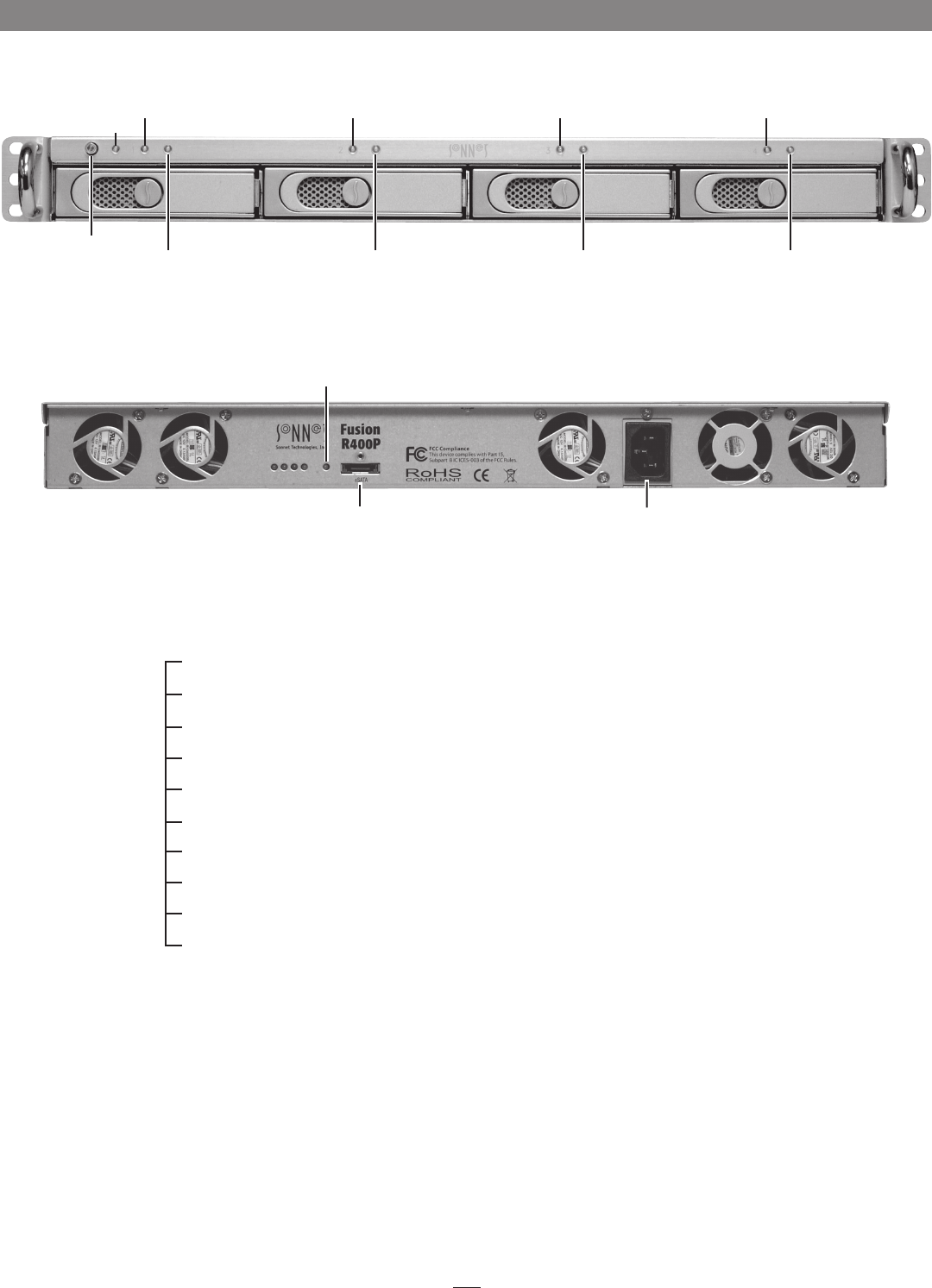

Figure 1
Drive Module
(Bay 1)
Drive Presence LED
(Bay 1)
Drive Presence LED
(Bay 2)
Drive Presence LED
(Bay 3)
Drive Presence LED
(Bay 4)
Drive Activity LED
(Bay 1)
Drive Activity LED
(Bay 2)
Drive Activity LED
(Bay 4)
Power LED
Host Communication
LED
Power switch
Power Cable
Connector
Drive Activity
LEDs (numbers
indicate bays)
4 3 2 1
Figure 2
eSATA
Port
Drive Module
(Bay 2)
Drive Module
(Bay 3)
Drive Module
(Bay 4)
Drive Activity LED
(Bay 3)
