User Manual

Enclosure Specifications
Compatibility Compatible with Mac
®
,
Windows
®
, and Linux
®
computers with SATA
controller with port
multiplier support
External Connectors One eSATA
Drives Supported 3 & 1.5 Gb/s Serial ATA;
7,200 RPM
Data Transfer Speed Up to 240 MB/s,
depending on host controller
used and configuration
OS Support Platform independent
Power Supply 110–240V, 50–60Hz
Operating Temperature 32˚ F to 95˚ F
(0˚ C to 35˚ C)
Dimensions (WxDxH) 5.9 x 11.2 x 8.6 in
(14,9 x 28,5 x 21,9 cm)
Weight (with drives) 19.2 lbs
(8,7 kg)
Package Contents Disk enclosure, five 3.5"
drive modules, drive tray
keys, power cord, one
locking eSATA data cable,
User's Guide
Fusion D500P Specifications and Features
2

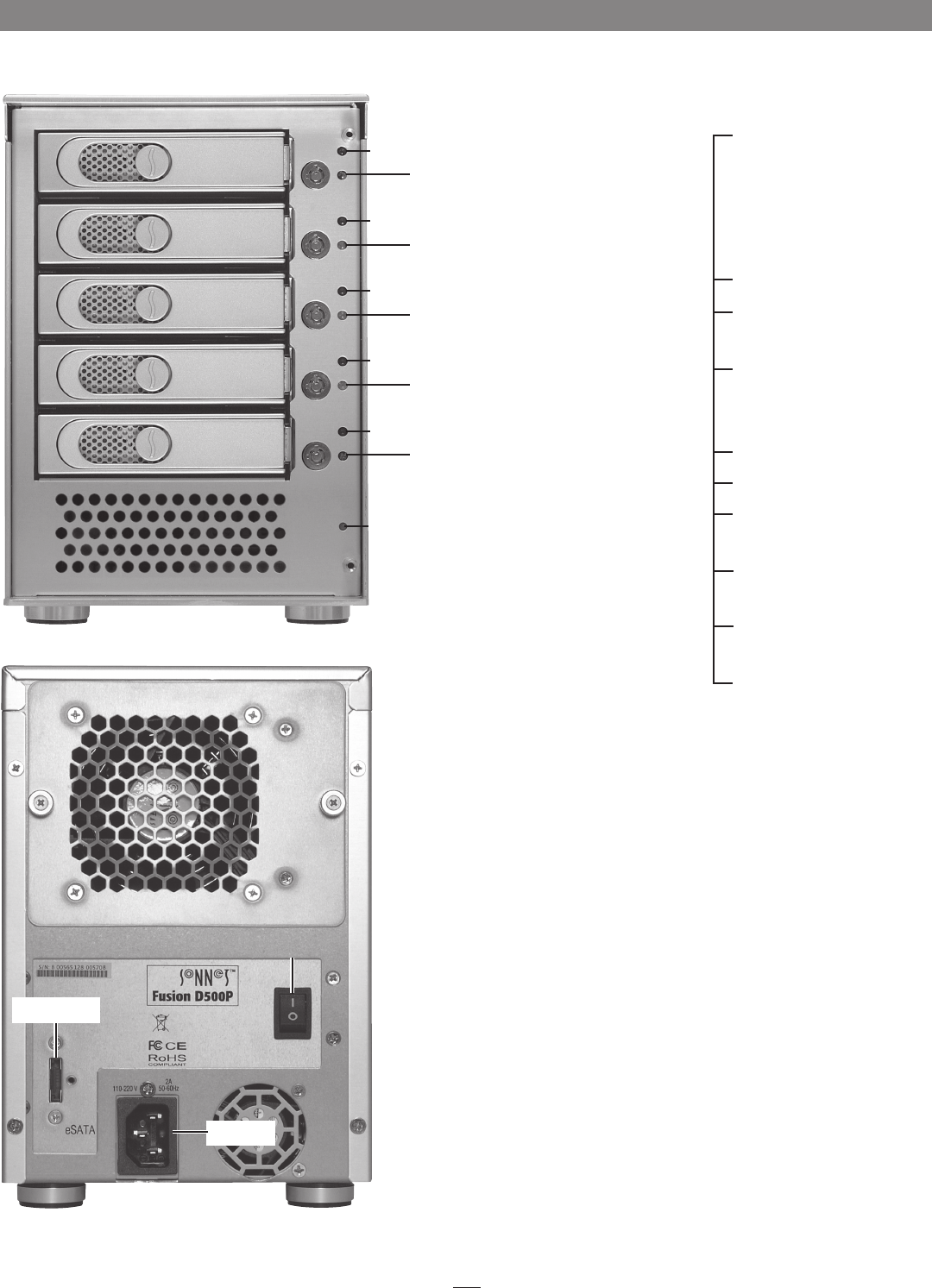

Drive Module (Bay 1)
Drive Module (Bay 2)
Drive Module (Bay 3)
Drive Module (Bay 4)
Figure 1
Drive Module (Bay 5)
Drive Presence LED
(Bay 1)
Drive Presence LED
(Bay 2)
Drive Presence LED
(Bay 3)
Drive Presence LED
(Bay 4)
Drive Presence LED
(Bay 5)
Drive Activity LED
(Bay 1)
Drive Activity LED
(Bay 2)
Drive Activity LED
(Bay 3)
Drive Activity LED
(Bay 4)
Drive Activity LED
(Bay 5)
Enclosure Power LED
Power Cable
Connector
eSATA Connector
Figure 2
Power Switch
Locking
eSATA Connector
