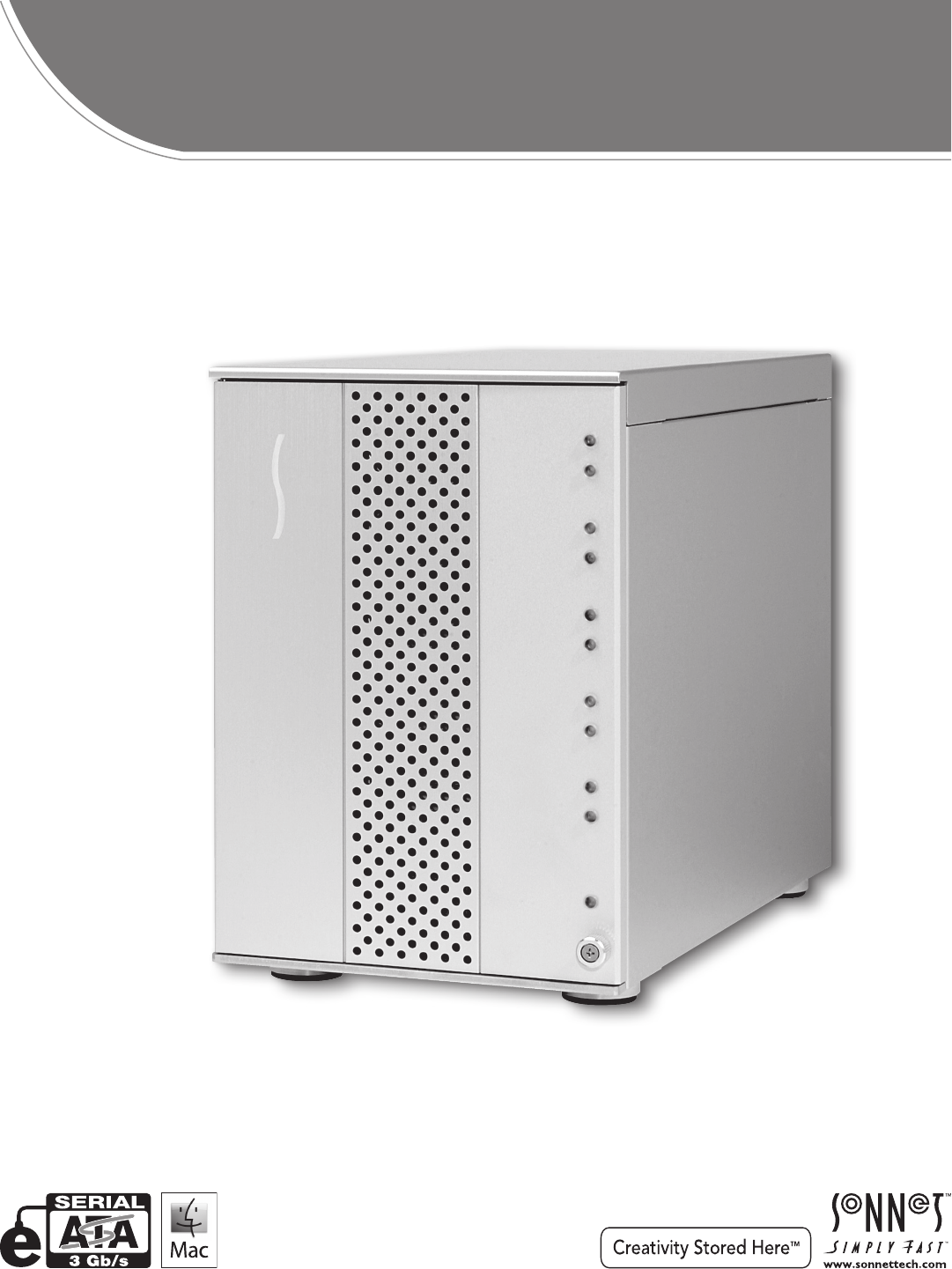

FUSION D500P ™ 5-Drive Serial ATA Disk Enclosure with Port Multiplier User’s Guide For Windows
Fusion D500P Specifications and Features Enclosure Specifications Drive Module (Bay 1) Drive Presence LED (Bay 1) Drive Activity LED (Bay 1) Drive Module (Bay 2) Drive Presence LED (Bay 2) Drive Activity LED (Bay 2) Drive Module (Bay 3) Drive Presence LED (Bay 3) Drive Activity LED (Bay 3) Drive Module (Bay 4) Drive Presence LED (Bay 4) Drive Activity LED (Bay 4) Drive Module (Bay 5) Drive Presence LED (Bay 5) Drive Activity LED (Bay 5) Enclosure Power LED Figure 1 Power Switch Locking eSATA Co
Safety Precautions and Disclaimers SAFETY PRECAUTIONS DISCLAIMERS Please read this section carefully before proceeding. These precautions explain the correct and safe use of this device, thereby helping to prevent injury to you or others, and also help you to minimize the risk of damaging the device. Drive Usage: Sonnet Technologies has qualified the hard drives listed below for use in Fusion D500P storage systems.
Drive Installation and Enclosure Setup 1. Remove the Fusion drive enclosure and drive modules from their packaging, and place them near the computer to which the enclosure will be connected. WARNING: When handling computer products, take care to prevent components from being damaged by static electricity; avoid working in carpeted areas. Handle hard drives only by their edges and avoid touching connector traces and component pins. push in lever release button 2.
Tips and Additional Information Contacting Sonnet Customer Service This section covers some common sense tips for using the Fusion D500P enclosure. USA Customers The Sonnet Web site located at www.sonnettech.com has the most current support information and technical updates. Before you call Sonnet Customer Service, please check our Web site for the latest updates and online support files, and check this User’s Guide for helpful information.
©2010 Sonnet Technologies, Inc. All rights reserved. Sonnet, the Sonnet logotype, Simply Fast, the Simply Fast logotype, Creativity Stored Here, and Fusion are trademarks of Sonnet Technologies, Inc. FireWire, Macintosh, Mac, the Mac logo, and Mac OS are trademarks of Apple Inc., registered in the United States and other countries. Other product names are trademarks of their respective owners. Product specifications subject to change without notice. Printed in the USA.
