SonicWALL NSA E6500 Getting Started Guide Page 39
Configuring L2 Bridge Mode
This section provides instructions to configure the SonicWALL
NSA E6500 appliance in tandem with an existing Internet
gateway device. This section is relevant to users following
deployment scenario C.
This section contains the following subsections:
•
Connection Overview - page 39
•
Configuring the Primary Bridge Interface - page 39
•
Configuring the Secondary Bridge Interface - page 40

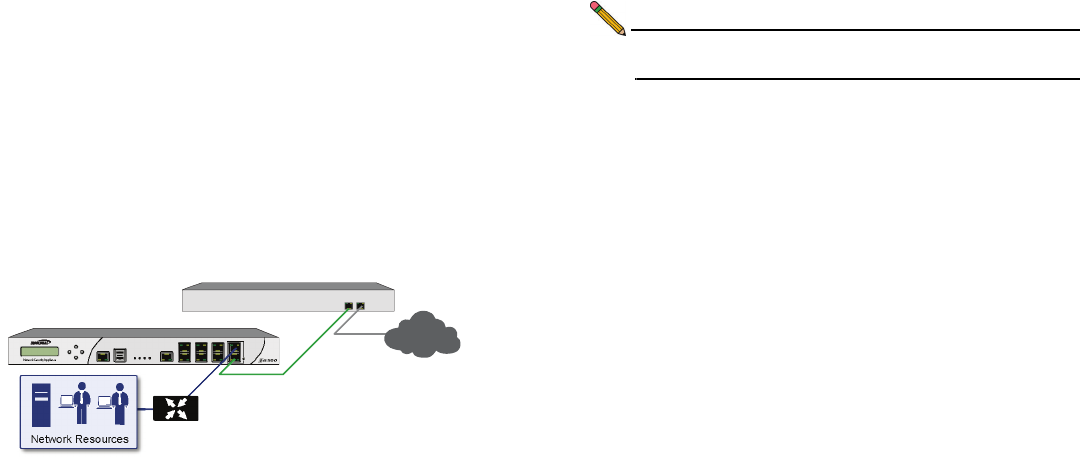

Connection Overview
Connect the X1 port on your SonicWALL NSA E6500 to the
LAN port on your existing Internet gateway device. Then
connect the X0 port on your SonicWALL to your LAN.
Configuring the Primary Bridge Interface
The primary bridge interface is your existing Internet gateway
device. The only step involved in setting up your primary bridge
interface is to ensure that the WAN interface is configured for a
static IP address. You will need this static IP address when
configuring the secondary bridge.
Note: The primary bridge interface must have a static IP
assignment.
%
6RQLF:$//16$(&ODVV
1HWZRUN*DWHZD\
/%ULGJH/LQN
1HWZRUN5HVRXUFHV
;
/$1
;
)NTERNETOR
,!.3EGMENT
