Chapter 4. WIRING
4-5
4-4 Layout of Terminals and Recommended Lead Draw-out
Direction

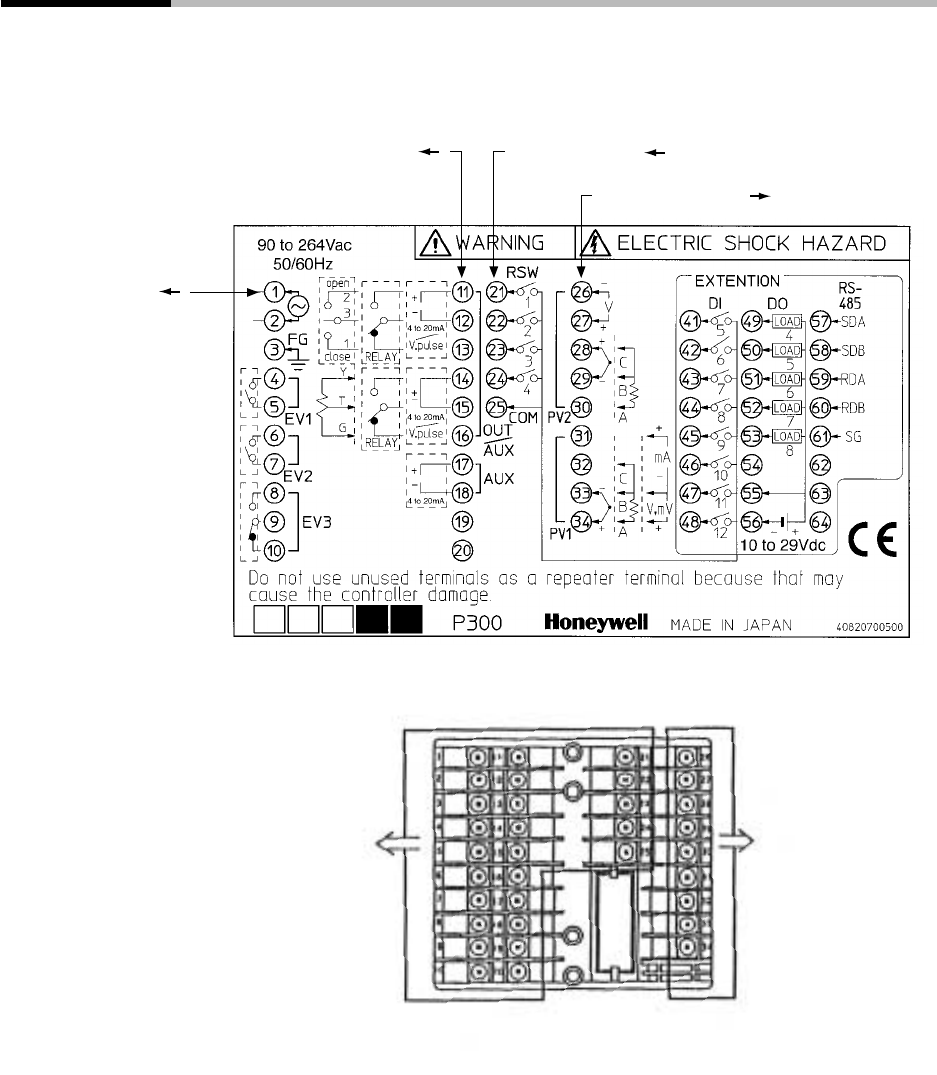

Wiring is carried out on the standard terminal base or add-on terminal base. The following diagram shows the recom-
mended draw-out directions for the leads on the standard terminal base.
The lead draw-out directions are the same when using the add-on terminal base.
Standard terminal base
Lead draw-out direction
Lead draw-out direction
(11) to (20) to left ( )
(1) to (10) to left ( )
(21) to (26) to left ( )
(26) to (34) to right ( )
