Chapter 8. PROGRAM SETUP
8-14
8-2 Copying Programs
The DCP301 can be set for copying programs in the program operation READY mode in the basic display state. If the
DCP301 is not in the basic display state, press
DISP
.
■ Operation
(1) Set the DCP301 to the program operation READY mode.
Set variable parameter L O C to either of 0, 1 or 3, and variable parameter P R T C to 0.
(2) In the basic display state, press
PROG
or to select the copy source program No.
However, note that the program No. cannot be selected on the console when control-
ling the DCP301 by external switch inputs.
For details, see 6-3 Program Selection (page 6-7).
(3) If you press +
PROG
, “C O P Y” is displayed on the upper display, and the copy
destination program No. is displayed on the lower display.
(4) If you press or , currently non-set program Nos. are displayed blinking in
order as the copy destination program No.
When there are no non-set program Nos., “- - - -” is displayed on the lower display.
(5) If you press
ENT
, program copy is executed, and the lower display stops blinking. To
repeat the procedure, carry out steps (4) and (5) again.
(6) To quit program copy, press
DISP
.

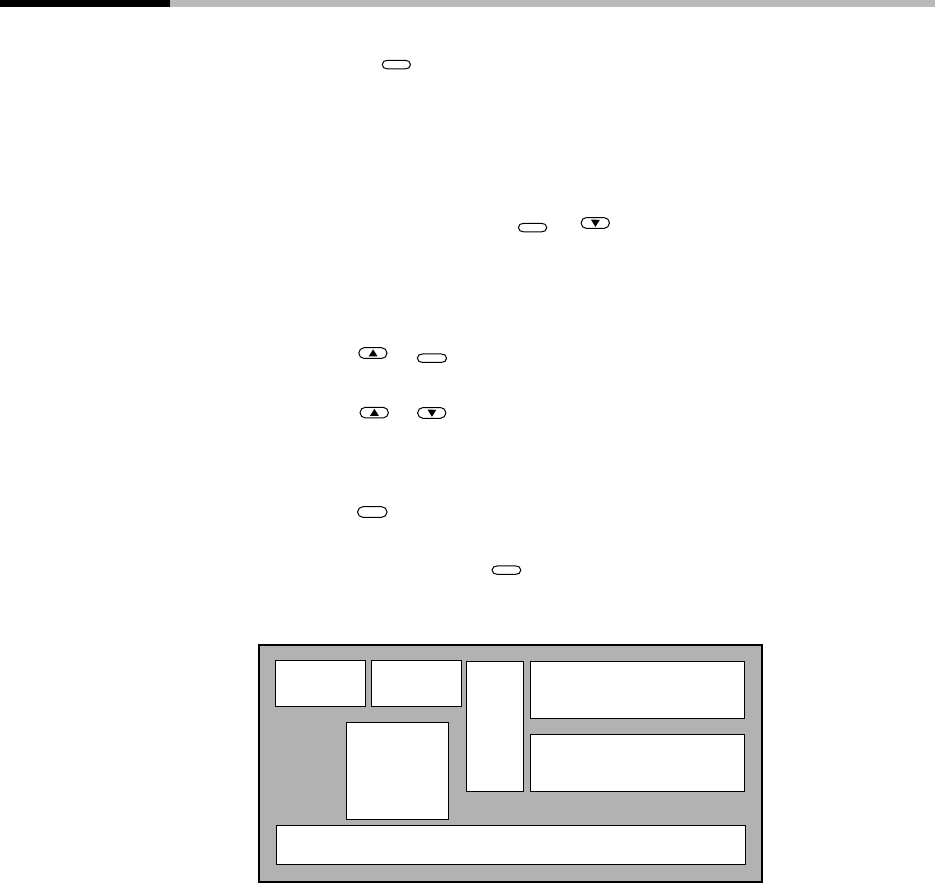

● Display
Program No.
Output state of events 1 to 3, time events 1 to 5
Copy destination program No.
C O P Y
