Chapter 8. PROGRAM SETUP
8-8

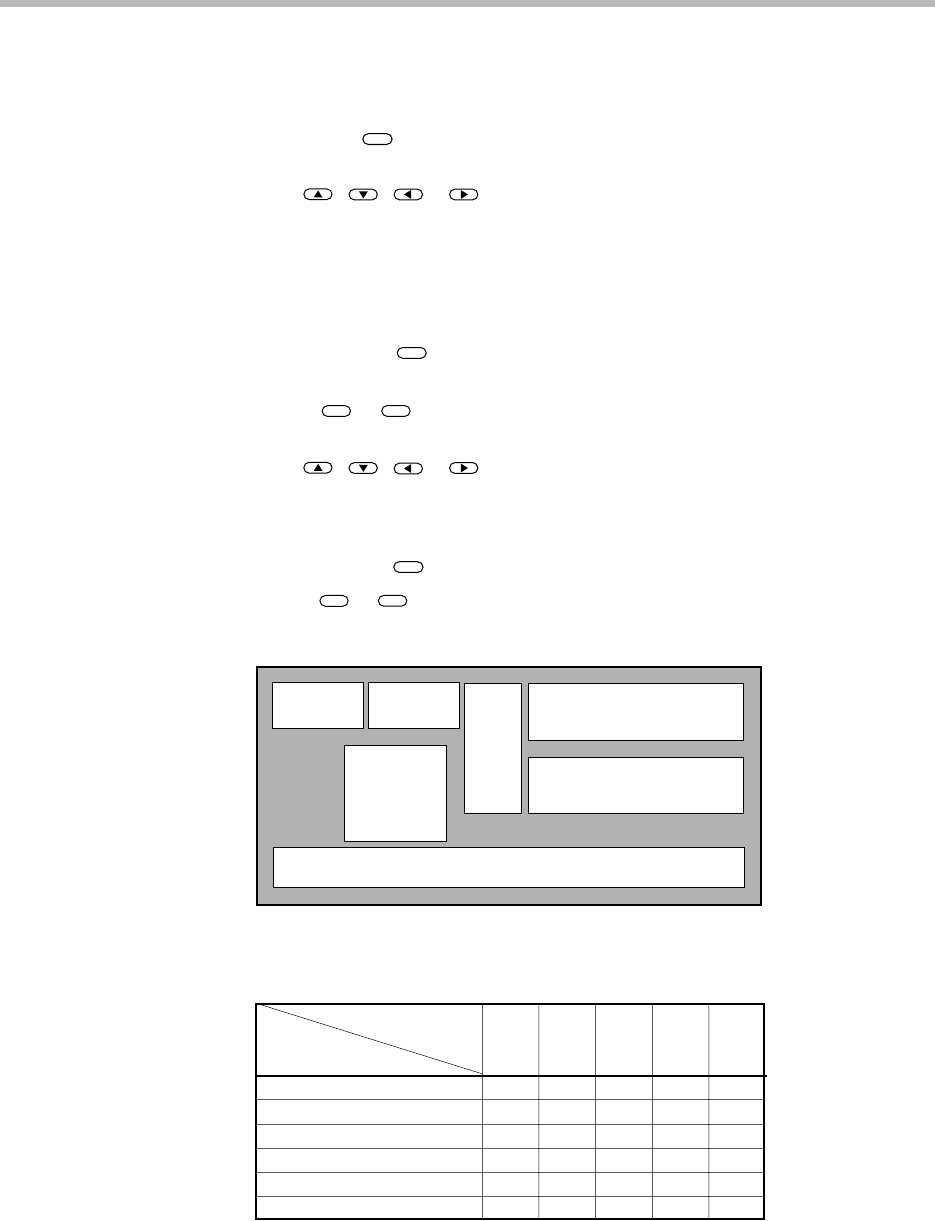

■ Setting up time events 1 to 5
(1) In the setting display state, move to the event 1 to 5 items of the segment to be set up
on the programming map.
(2) If you press
ENT
, the upper display starts blinking to indicate start of entry to the
No.1 setup.
(3) Press , , or to set to the No.1 setup ON time setting.
Setting range: 0:00 to 99:59 (h:min/min:s)
0.0 to 599.9 (0.1s)
(Select either of h:min or min:s as the time unit in setup data C 6 4. “:” is substituted by
“.” as it cannot be displayed.)
(4) When you press
ENT
, blinking on the upper display stops. The lower display then
starts blinking to indicate start of entry to the No.2 setup.
(When
FUNC
+
CLR
are pressed, the upper and lower displays both return to “- - - -”
and blinking stops.)
(5) Press , , or to set to the No.2 setup ON time setting.
Setting range: ON time setting + 0:01 to 99:59 (h:min/min:s)
ON time setting + 0.1 to 599.9 (0.1s)
(6) When you press
ENT
, blinking on the upper display stops.
(When
FUNC
+
CLR
are pressed, the upper display returns to “- - - -” and stops blinking.)
● Display
ON time setting value
OFF time setting value
Program No. Segment No.
Pattern
tendency
LEDs corresponding to EV1 to EV3 lit. T1 to T5 all out
• “- - - -” is displayed for the setting values in non-set segments.
• On models that do not support time events, event 1 to 5 items on the programming map
are all skipped and not displayed. The table below shows time events by a «.
• When setup data C 6 Q is set to 1, event 1 to 5 items on the programming map are all
skipped and not displayed.
• When the ON time is set to 99:59, “- - - -” is displayed as the OFF time, and the display
does not blink.
• When the ON time is set higher than the time setting of the pattern item, event output
at that segment is OFF. However, note that event output is ON when the mode changes
to the END mode at segments whose ON time and pattern item time are equal.
Time event No.
TT
TT
T
TT
TT
T
setting value
T1 T2 T3 T4 T5
0 «««««
1 ««««
2 «««
3 ««
4 «
5
