Chapter 8. PROGRAM SETUP
8-7
● When event type is time event
(1) In the setting display state, move to the event 1 to 3 items of the segment to be set up
on the programming map.
(2) If you press
ENT
, the upper display starts blinking to indicate start of entry to the
No.1 setup.
(3) Press , , or to set to the No.1 setup ON time setting.
Setting range: 0:00 to 99:59 (h:min/min:s)
0.0 to 599.9 (0.1s)
(Select either of h:min or min:s as the time unit in setup data C 6 4. “:” is substituted
by “.” as it cannot be displayed.)
(4) When you press
ENT
, blinking on the upper display stops. The lower display then
starts blinking to indicate start of entry to the No.2 setup.
(When
FUNC
+
CLR
are pressed, the upper and lower displays both return to “- - - -”
and blinking stops.)
(5) Press , , or to set to the No.2 setup ON time setting.
Setting range: ON time setting + 0:01 to 99:59 (h:min/min:s)
ON time setting + 0.1 to 599.9 (0.1s)
When you press
ENT
, blinking on the upper display stops.
(6) (When
FUNC
+
CLR
are pressed, the upper display returns to “- - - -” and stops blink-
ing.)

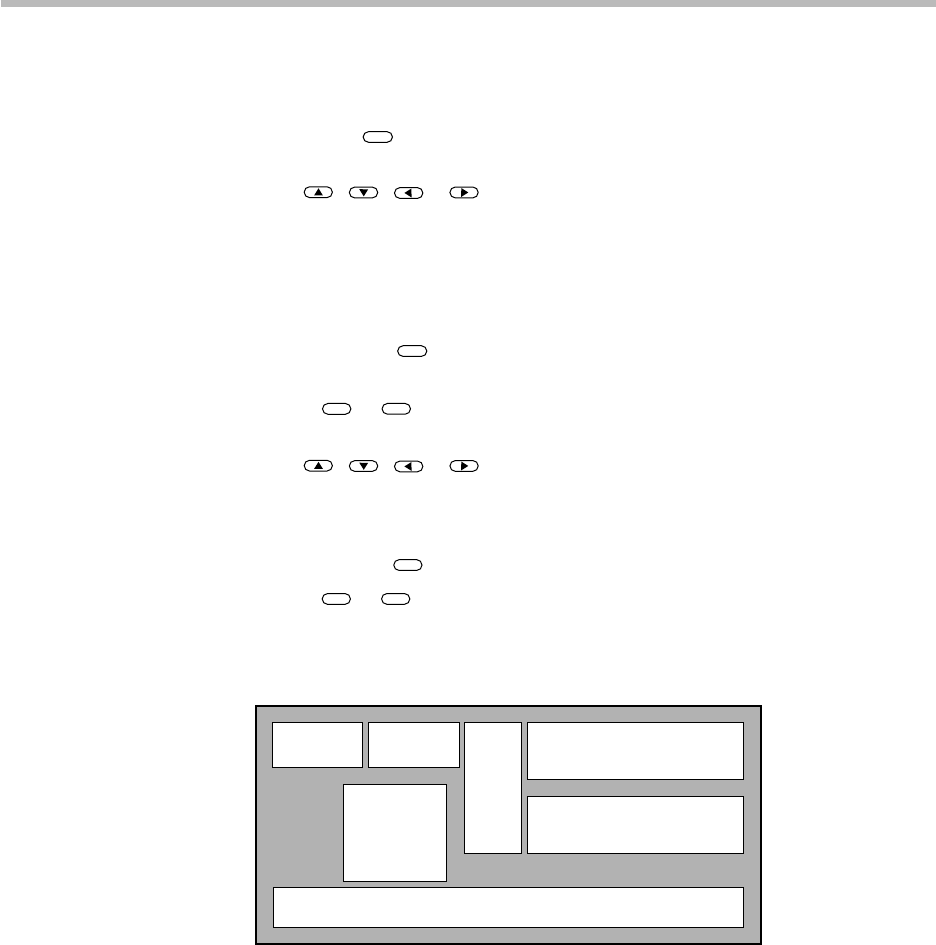

● Display (time event)
ON time setting value
OFF time setting value
Program No. Segment No.
Pattern
tendency
LEDs corresponding to EV1 to EV3 lit. T1 to T5 all out
• “- - - -” is displayed for the setting values in non-set segments.
• When setup data C 6 8 is set to 1, event 1 to 3 items on the programming map are all
skipped and not displayed.
• When the event type is set to time event and the ON time is set to 99:59, “- - - -” is
displayed for the ON time and the display does not blink. In this case, the OFF time
cannot be set.
• When the event type is set to time event and the ON time is set higher than the time
setting of the pattern item, event output at that segment is OFF. However, note that
event output is ON when the mode changes to the END mode at segments whose ON
time and pattern item time are equal.
● When event type is controller status event
In this case, the event item on the programming map is skipped and not displayed.
