User's Manual
Table Of Contents
- Important Safety Instructions
- Overview
- The ERU assembly
- Do you have everything?
- Safety precautions
- Introduction
- Installing the ERU
- Installation overview
- Installation guidelines and requirements
- Estimating cable requirements
- Assembling the mounting bracket and pipe
- Installing the ERU on solid wood or lap siding
- Installing the ERU on brick or poured concrete
- Installing the ERU on a cinder-block or hollow wall
- Installing the ERU under the eaves
- Installing the ERU on a roof
- Attaching the ERU to the mounting assembly
- Routing and grounding the exterior cables
- Routing cable to the SOMAport
- Troubleshooting
55
Installing the ERU
7
Route the RG-6/U coaxial cable through the building and insert it into the
F-connector on the back of the SOMAport.
8
Seal the access point into the building with silicone sealant.
9
Turn on the SOMAport.
The SOMAport takes a few minutes to start and connect to the network.
Make sure the SOMAport is operational. When the Status light turns solid green,
the SOMAport has acquired a radio channel and is operational.
10
Look at the light next to the F-connector on the back of the SOMAport to make
sure it is using the ERU.
If the light is green, the ERU is being used.
If the light is off, the internal SOMAport antenna is being used.
11
Test the equipment that is attached to the SOMAport.

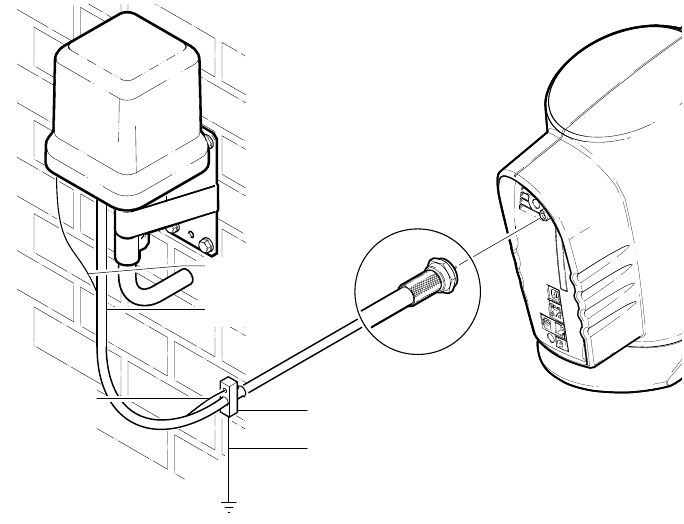

00429
Ground Block
#10 AWG Copper Grounding
Wire to Central Building Ground
RG-6/U Coaxial Cable
Messenger
Grounding Wire
Messenger
Grounding Wire
