User's Manual
Table Of Contents
- Important Safety Instructions
- Overview
- The ERU assembly
- Do you have everything?
- Safety precautions
- Introduction
- Installing the ERU
- Installation overview
- Installation guidelines and requirements
- Estimating cable requirements
- Assembling the mounting bracket and pipe
- Installing the ERU on solid wood or lap siding
- Installing the ERU on brick or poured concrete
- Installing the ERU on a cinder-block or hollow wall
- Installing the ERU under the eaves
- Installing the ERU on a roof
- Attaching the ERU to the mounting assembly
- Routing and grounding the exterior cables
- Routing cable to the SOMAport
- Troubleshooting
47
Installing the ERU
Electrical code compliance
The ERU must be grounded in accordance with Section 810 of the National
Electrical Code (NEC), Section 10 of the Canadian Electrical Code (CEC), or

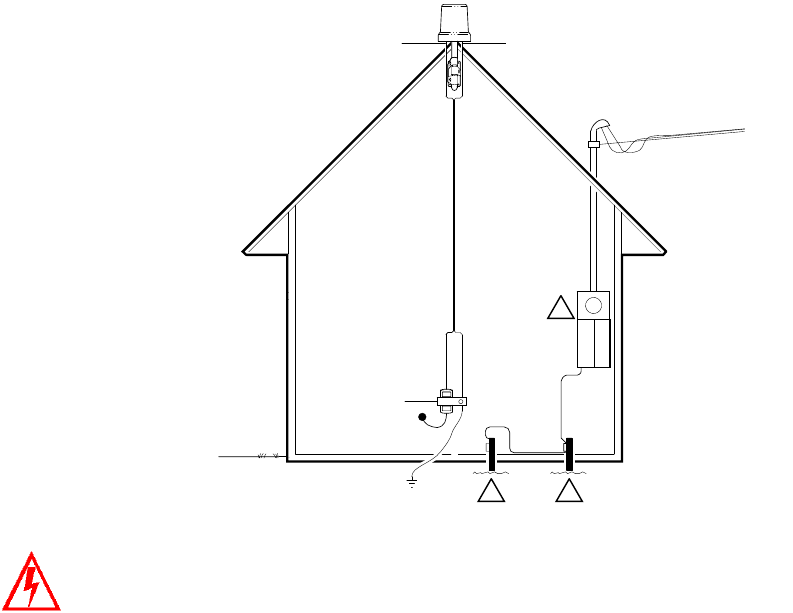

the electrical code of the country in which you are installing the ERU. The
following illustration, which is not to scale, depicts the grounding requirements.
Grounding options A to C are described on page 48.
to Building Ground
A, B, or C
00469
A
Grounding
Block
RG/6
Coax
Ground
Wire
B
C
CAUTION:
It is extremely important to ground the ERU and the coaxial
cable to a single point in the central building ground. A nearby lightning strike can
easily damage the ERU, the SOMAport, and any attached equipment. Connecting
both wires to the same point in the central building ground meets code
requirements and provides the best protection for your equipment.
