External Radio Unit Installation Guide
Attaching the ERU to the mounting assembly
Once the mounting bracket-and-pipe assembly is securely attached to the
mounting surface and the mounting pipe is pointing straight up, you can attach
the ERU to the mounting assembly.
At this point you should also attach the coaxial cable and grounding wire to the
base of the ERU in preparation for the grounding procedure that follows.

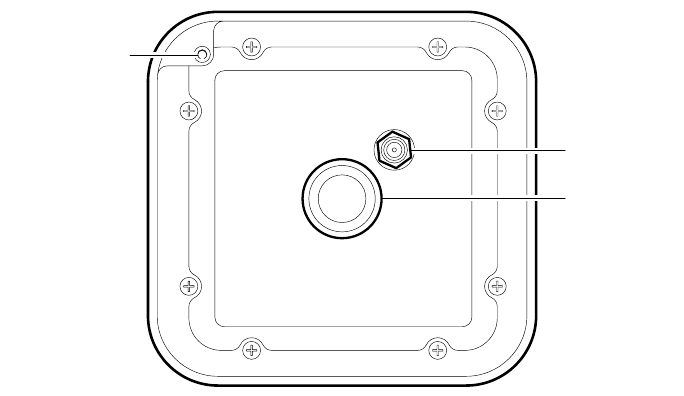

The ERU base
The mounting pipe, coaxial cable, and grounding wire are attached to the base of
the ERU, as described in this section.
00475
Grounding Wire Hole
F - Connector
Mounting Pipe Hole
