External Radio Unit Installation Guide
Tools and materials
Make sure you have the following items on hand before you begin.
To install the mounting assembly on a roof
1

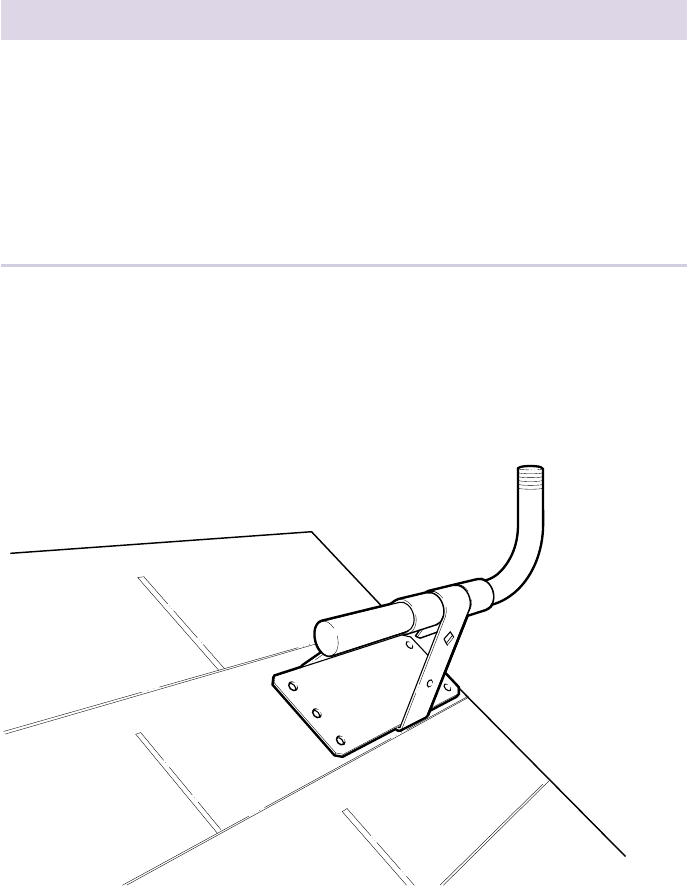

Locate the center of a rafter where you want to place the mounting bracket-and-
pipe assembly.
2
Hold the long end of the bracket base across a rafter so that it is
perpendicular to, rather than parallel to, the centerline of the rafter.
Materials Tools
Four 5/16-inch x 2-inch lag screws Electric drill with a 3/16-inch bit
Four 5/16-inch flat washers Carpenter’s level
Silicone sealant Screwdriver
Hammer
11-mm (7/16-inch) open-end or box-end
wrench or a small adjustable wrench
Pencil or chalk
