User's Manual
Table Of Contents
- Important Safety Instructions
- Overview
- The ERU assembly
- Do you have everything?
- Safety precautions
- Introduction
- Installing the ERU
- Installation overview
- Installation guidelines and requirements
- Estimating cable requirements
- Assembling the mounting bracket and pipe
- Installing the ERU on solid wood or lap siding
- Installing the ERU on brick or poured concrete
- Installing the ERU on a cinder-block or hollow wall
- Installing the ERU under the eaves
- Installing the ERU on a roof
- Attaching the ERU to the mounting assembly
- Routing and grounding the exterior cables
- Routing cable to the SOMAport
- Troubleshooting
41
Installing the ERU
Installing the ERU on a roof

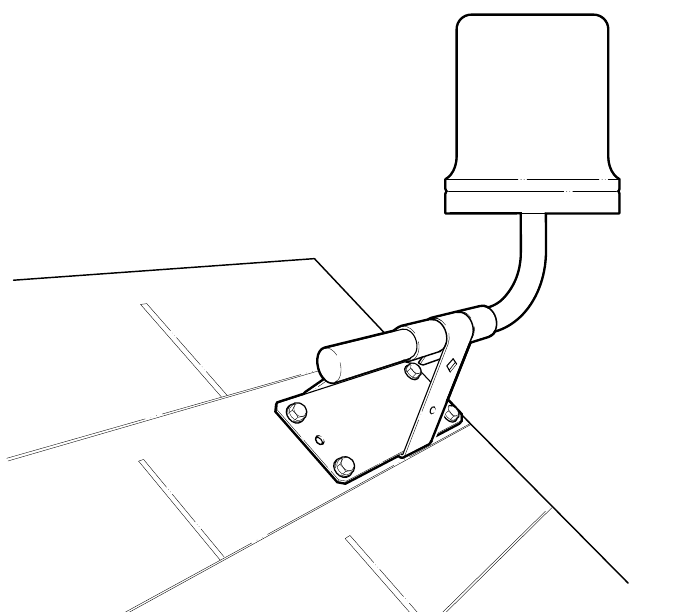

The following illustration shows a rooftop installation.
When installing the ERU on a roof, install it in the highest possible location to
maximize the signal you receive.
ATTENTION:
Under some conditions, walking on the roof can cause
damage, and improperly sealed mounting holes can cause leaks. Use caution
when installing the ERU on the roof.
00487
