External Radio Unit Installation Guide
5

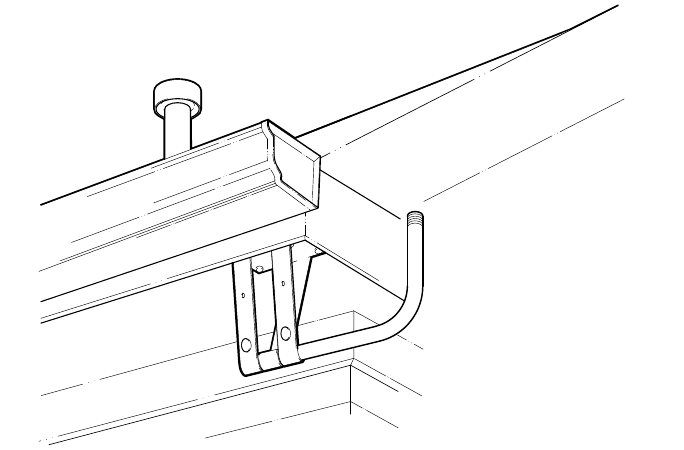

Hold the mounting bracket-and-pipe assembly over the holes so that the short
end of the mounting pipe points straight up.
6
Insert a 5/16-inch x 2-inch lag screw in each of the holes to attach the mounting
bracket.
7
Tighten the screws to secure the mounting bracket-and-pipe assembly under
the eaves.
8
Use a level to see if the mounting pipe is pointing straight up.
If the pipe is not perfectly vertical:
i
Use a wrench to loosen the three bolts that secure the mounting bracket to
the pipe.
ii
Grasp the mounting pipe and rotate it until the short end of the pipe is pointing
up and is perfectly vertical.
iii
Tighten the three bolts to hold the mounting pipe securely in a vertical
position.
9
Attach the ERU to the mounting assembly as described in the section
“Attaching the ERU to the mounting assembly” on page 44.
