Installing the ERU
Installing the ERU on brick or poured concrete

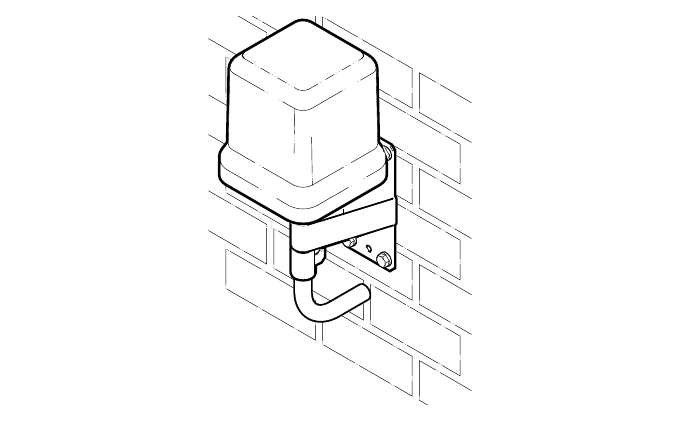

The following illustration shows an installation on an external wall that is made
of brick or poured concrete.
This installation option requires the use of wall anchors, which must have a
strength of at least 135 kgs (300 pounds) of pull-out pressure. B4015 or
equivalent double-expansion anchors are recommended.
