External Radio Unit Installation Guide
7

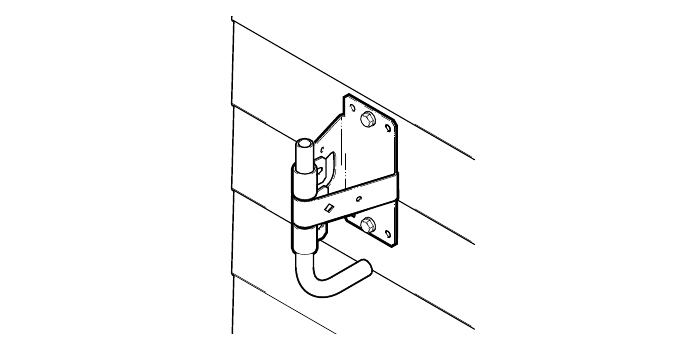

Hold the mounting bracket-and-pipe assembly over the holes so that the long
end of the pipe points straight up.
8
If the mounting bracket spans two pieces of siding, use a spacer.
The mounting bracket should be positioned so that most of it is on the top board. A
spacer should be installed to help hold the bottom of the mounting bracket in
place. The spacer can be made of either solid wood or plastic.
9
Insert a 5/16-inch x 2-inch lag screw in each of the holes to attach the mounting
bracket to the wall.
10
Tighten the screws to secure the mounting bracket-and-pipe assembly to the
wall.
11
Attach the ERU to the mounting assembly as described in the section
“Attaching the ERU to the mounting assembly” on page 44.
