Installing the ERU
To assemble the mounting bracket and pipe
1
Slide the mounting bracket over the long end of the mounting pipe and then
assemble according to the mounting option you have chosen:
Option Assembly

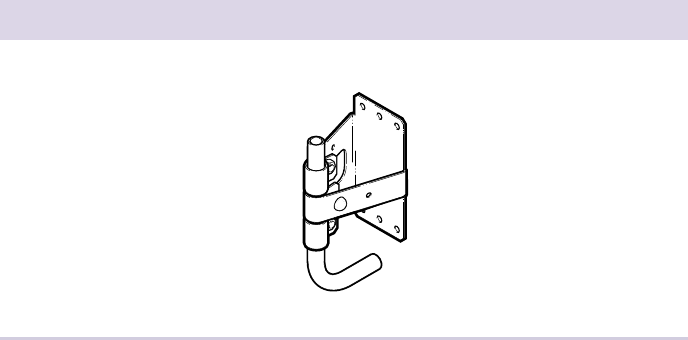

Wall Position the bracket so that it is centered on the long end of the pipe. Make
sure the bend in the pipe is oriented as shown below.
Continued
00464
