User's Manual
Table Of Contents
- Important Safety Instructions
- Overview
- The ERU assembly
- Do you have everything?
- Safety precautions
- Introduction
- Installing the ERU
- Installation overview
- Installation guidelines and requirements
- Estimating cable requirements
- Assembling the mounting bracket and pipe
- Installing the ERU on solid wood or lap siding
- Installing the ERU on brick or poured concrete
- Installing the ERU on a cinder-block or hollow wall
- Installing the ERU under the eaves
- Installing the ERU on a roof
- Attaching the ERU to the mounting assembly
- Routing and grounding the exterior cables
- Routing cable to the SOMAport
- Troubleshooting
24
External Radio Unit Installation Guide
Assembling the mounting bracket and pipe
This section describes how to attach the mounting bracket to the mounting pipe.
The recommended procedure is to attach the the bracket-and-pipe assembly to
the mounting surface (wall, roof, or under the eaves) and then attach the ERU to
the mounting pipe. This makes it easier to handle the assembly while attaching it
to the mounting surface.

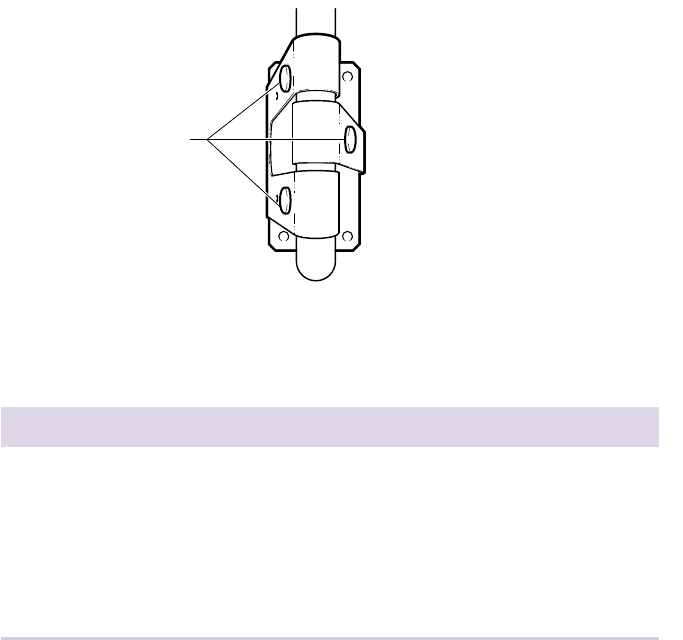

You will use three bolts to attach the mounting bracket to the mounting pipe.
These bolts are inserted into the diamond-shaped holes on the mounting bracket
as shown in the following illustration.
Tools and materials
Make sure you have the following items on hand before you begin.
00468
Bolts
Materials Tools
Mounting bracket 11-mm (7/16-inch) open-end or box-end
wrench or a small adjustable wrench
Mounting pipe
3 bolts
3 washers
3 hex nuts
