Section5
5.1 Specifications
Mechanical Specification
Mounting Type Wall or rack mounting

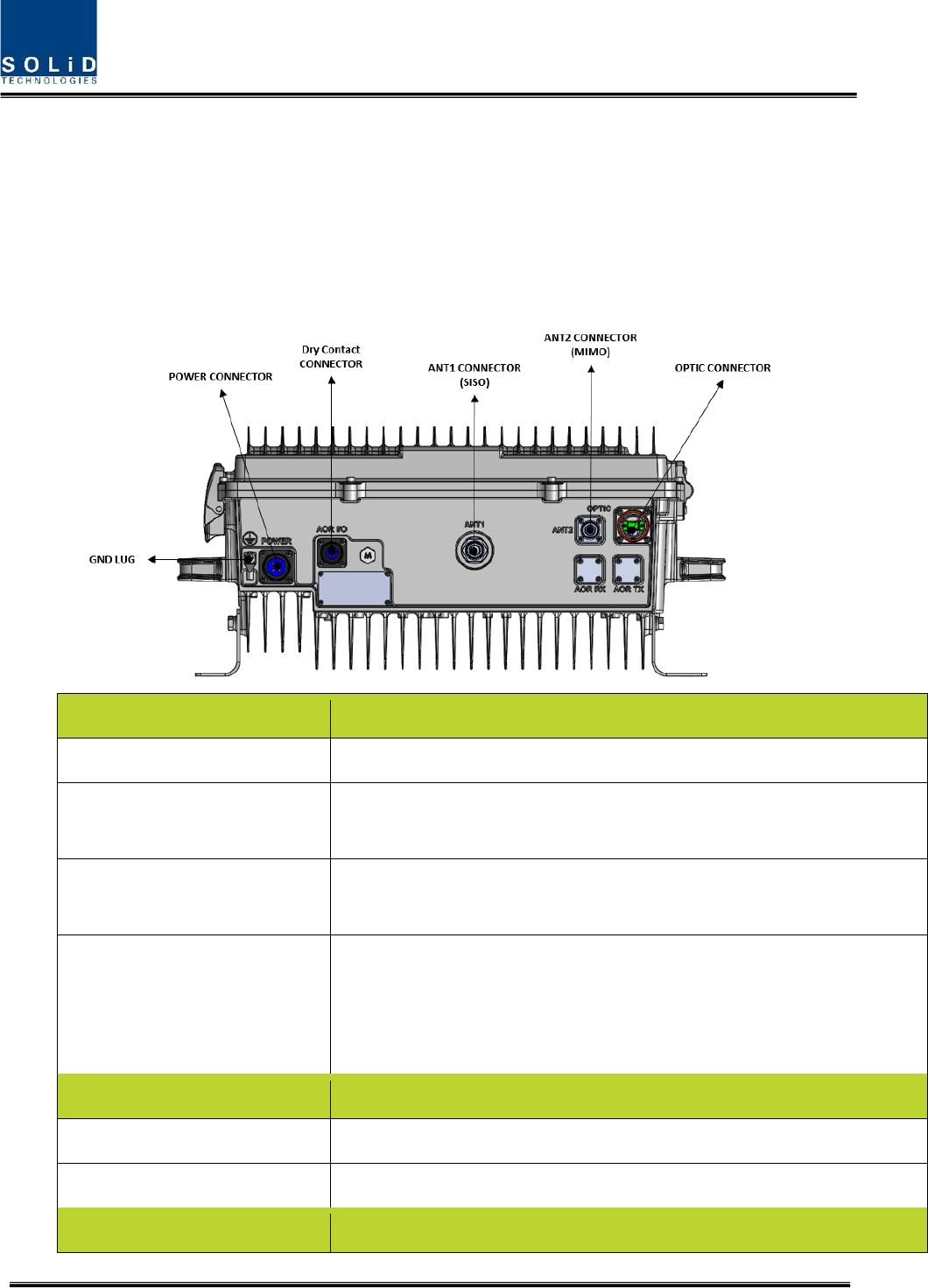

Connectors
Antenna port type: 4.3-10 DIN (M) type
Fiber connectors: SC/APC for connecting to ODU or OEU
Craft Port
Serial interface RS-232 9-pin D-sub Male for connecting management PC
(on CPU)
Power Consumption
175W for 4 bands(850C, 1900P, AWS13, L2600F)
265W for 6bands(850C, 1900P, AWS13, L2600F, 1900P_M, L2600F_M or
850C, 1900P, AWS13, L2600F, AWS13_M, L2600F_M) – optional band is
AWS13_M and L2600F_M
Environmental Specification
Environmental & IP Rating IP66 Compliant, NEMA4
Operating Environment Temp Range: -10°C to 50°C. Humidity: 5 to 90% non-condensing
Optical Specification
