Mounting of N2RDU_1900P_M+ N2RDU_L2600F_M or AWS13_M+ N2RDU_L2600F_M
(MIMO Band Expansion)
N2RDU_1900P_M, N2RDU_AWS13_M and N2RDU_L2600F_M module can be installed in the
N2RDU as an optional module in the pink box shown in the figure below. It can be installed with
12 screws included in the package.

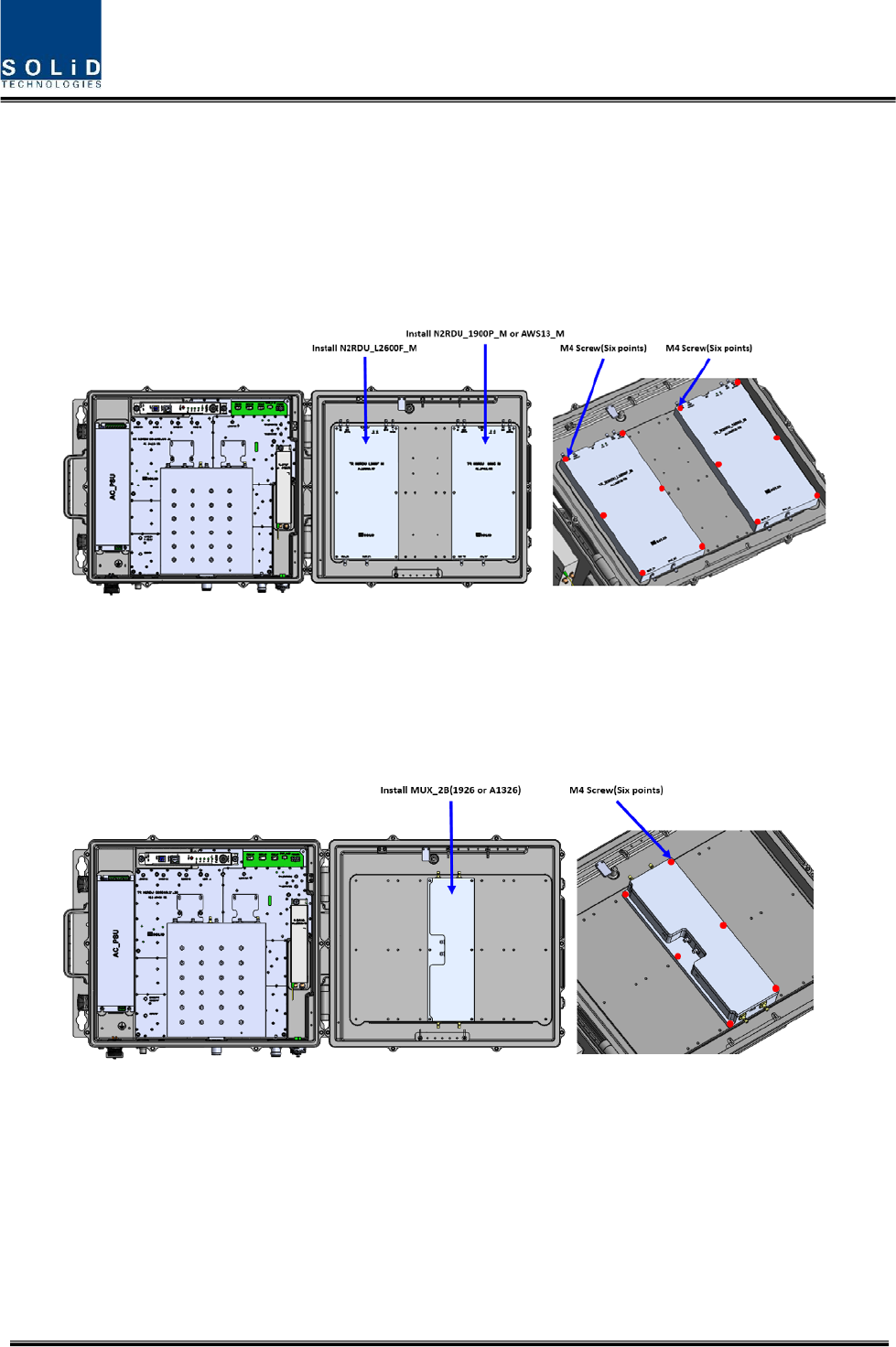

Figure 4.14 – Install N2RDU_1900P_M + N2RDU_L2600F_M or AWS13_M +
N2RDU_L2600F_M
To service 1900P_M, AWS13_M and L2600F_M Band Expansion, MUX_2B(1926 or A1326) is
required, and it can be installed with 6 screws included in the package.
Figure 4.15 – Install MUX_2B(1926 or A1326)
