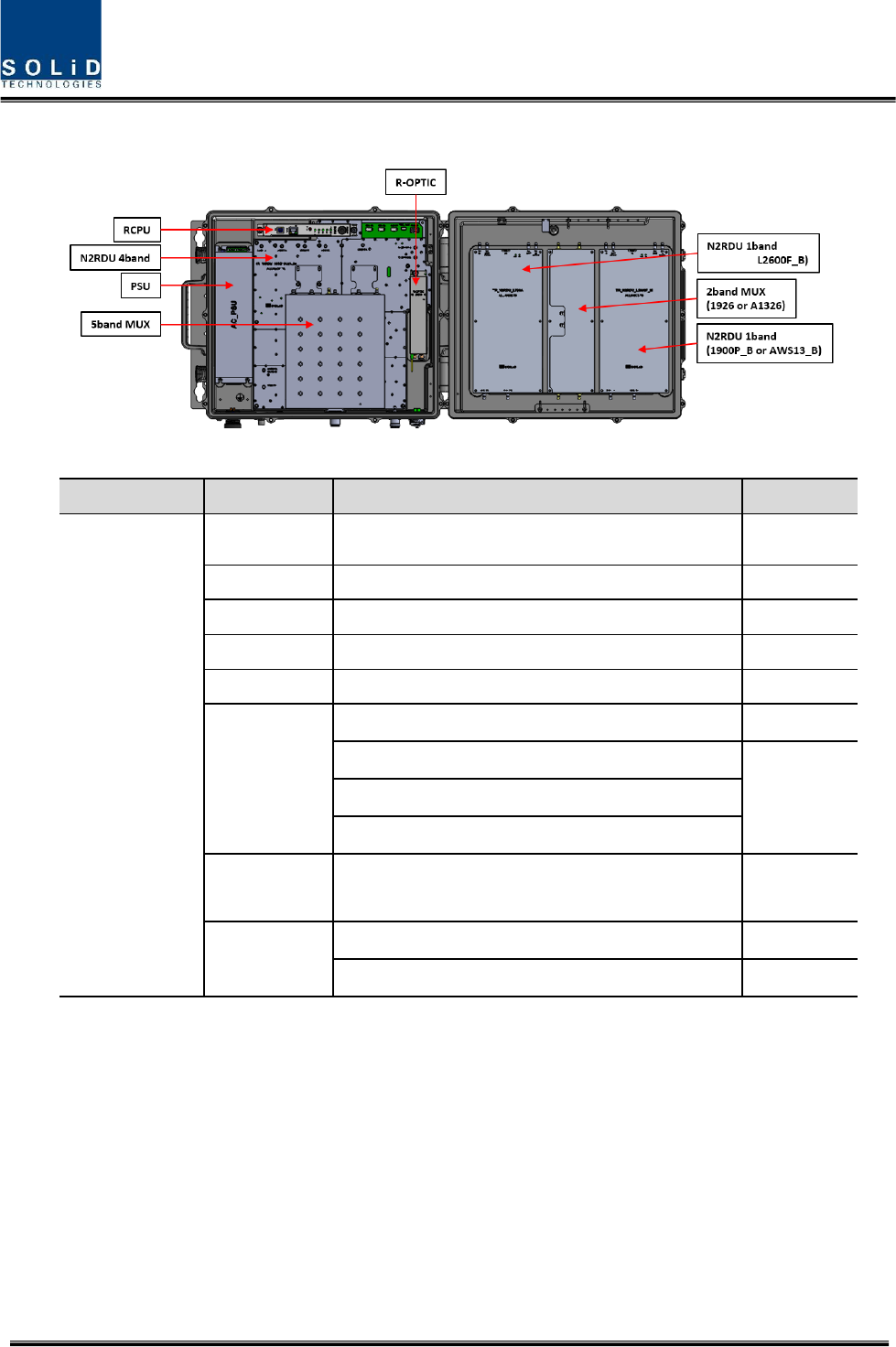

N2ROU Components
N2ROU has the following components:
No. Unit Description Remark
Common Part
Enclosure N2ROU_BASE_AC 1EA
RCPU Remote Central Processor Unit 1EA
R_OPTIC Remote Optic (only Remote Unit) 1EA
RPSU Remote AC Power Supply Unit 1EA
Power Cable MS Connector with 4 holes 1EA
N2RDU
N2RDU_8519A1326 ANT1
N2RDU_1900P_M
ANT2
N2RDU_AWS13_M
N2RDU_L2600F_M
MUX_4B
Internal Combiner Unit for 850C, 1900P, AWS13,
L2600F
1EA
MUX_2B
Internal Combiner unit for 1900P_M, L2600F_M 1EA
Internal Combiner unit for AWS13_M, L2600F_M 1EA
Basically, the N2ROU is equipped with RCPU to check and control state of each module, R_OPTIC
to covert RF to opticals and vise versa, RPSU to supply power for N2ROU. It should have a power
cable for external rectifier or to supply required power.
