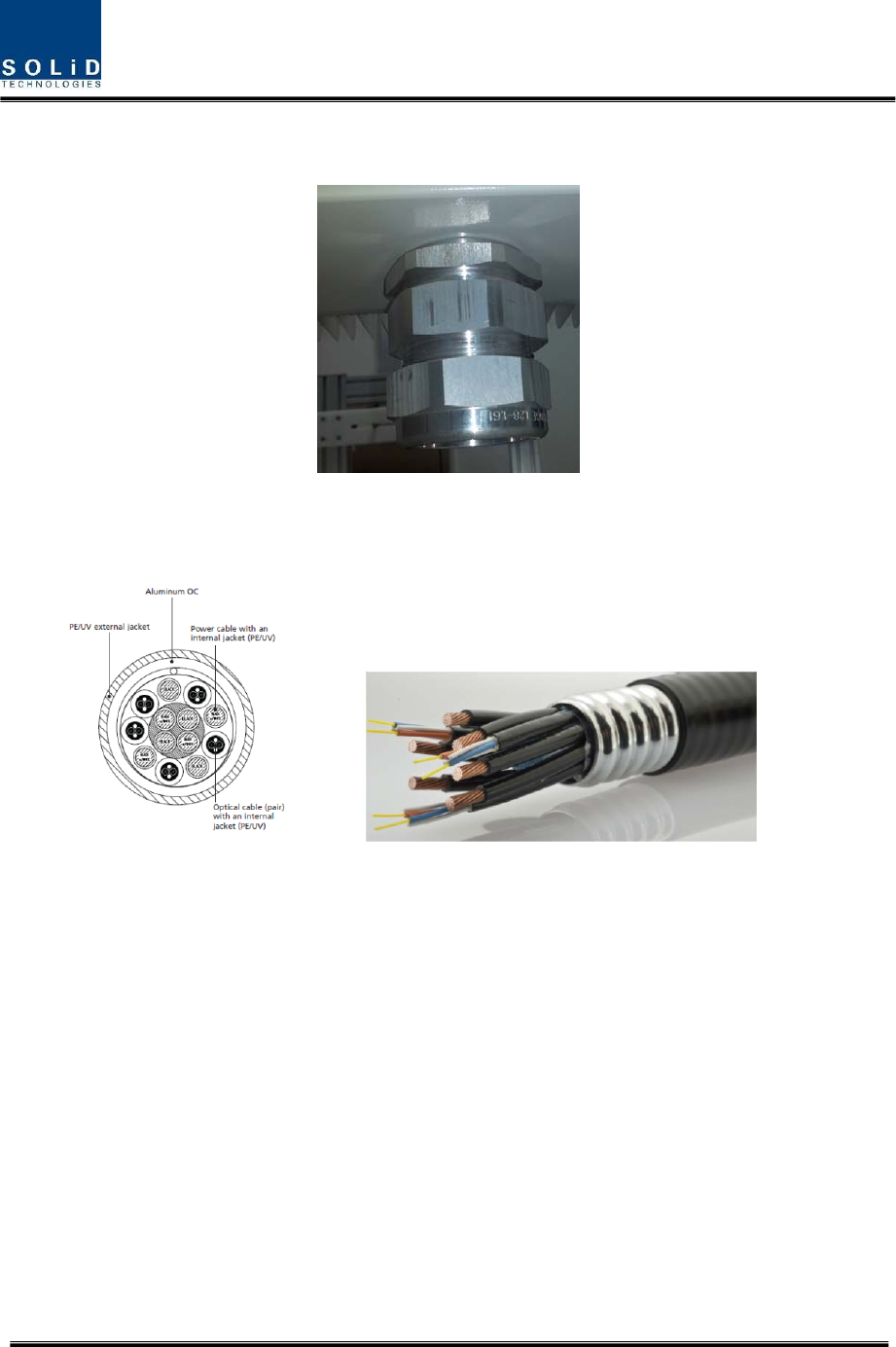

Inorderto installthepower connection, first connectHBG‐114‐1connector(RFS)onhole at bottomof
enclosure.ThisHBG‐114‐1connectorhas36.0mmdiameterandmadeofaluminum.

Therecommended cable is HYBRIFLEX(HB114‐1‐08U5‐S6F, RFS),which consist SM6F/O,5DC pairs and
8AWG. The cable’s
outer conductor armor have corrugated aluminum with external jacket made of
polyethylence(PE).
 
The outer conductor grounding have a role to eliminate typical grounding requirement and saves on
installationcosts.Afterstrippingexternaljacketofcableusingtoolintheproperandthenconnectitto
HBG‐114‐1connector.FastenexternalhexnutofHBG‐114‐1connecttobefixed.

The
powerinstallationproceduresareasbelow
1. Takeoff20020517M031B01LFconnectorfromRPSU
2. TherecommendedwiresizeisbelowAWG#10
3. Select3wireamong8AWGs
4. TheproperstriplengthofAWGcableis6~7mm
5. Andinsertthiswireintodesignat edpositionofconnector
6. SecureM3.5screwusing
screwdriverwithscrewtype“–“
7. ConnectthisconnectoronRPSUandsecurescrewusingscrewdrivertofix

