4.1.2 RemoteUnitPowerCabling
RemoteUnitsupportsonlyAC120Vofinputpower.

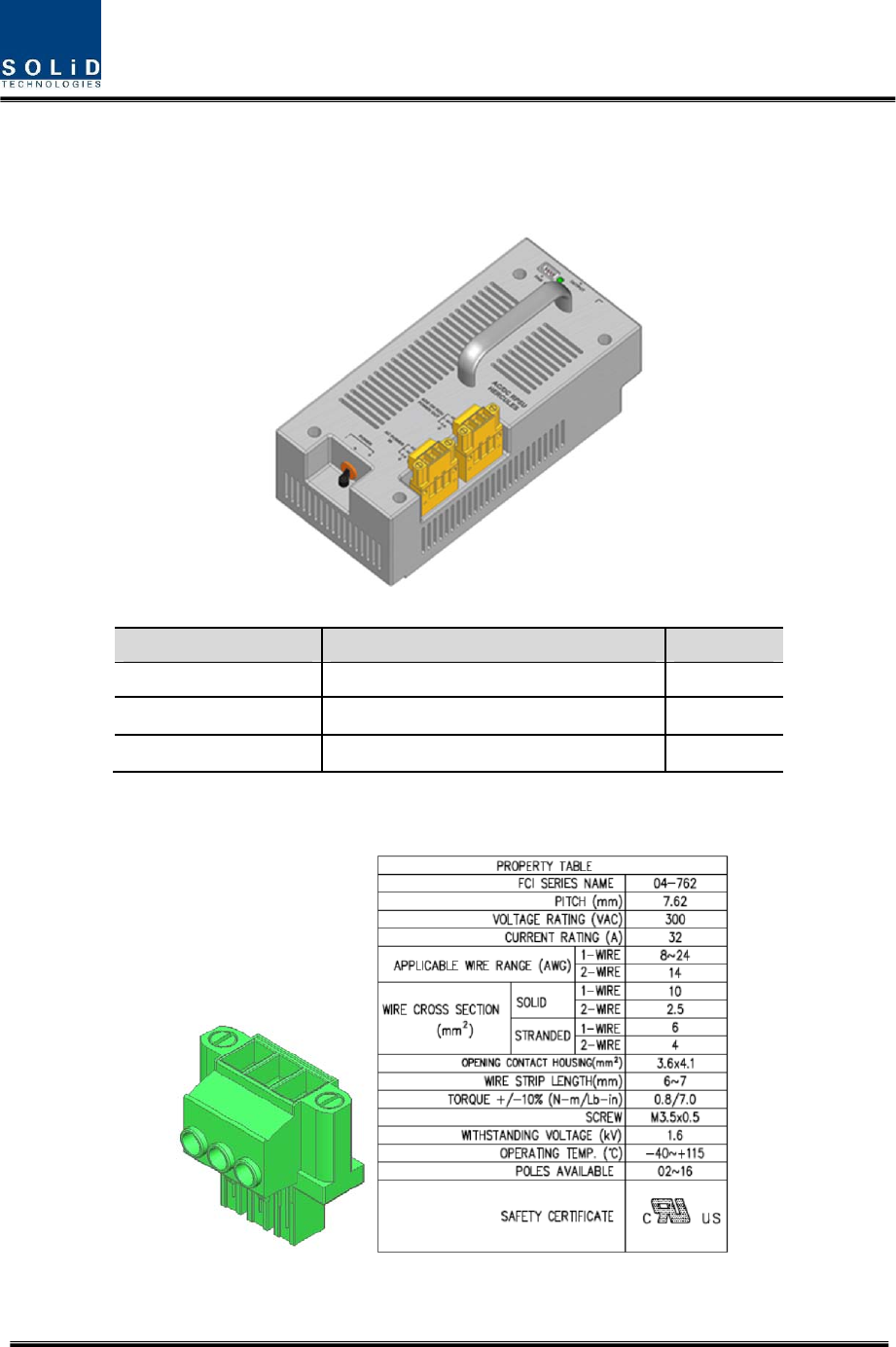

ThefollowingfigureshowsconfigurationofpowersupplyforAC120V.


LugNaming RPSUTer minalnaming Remark
AC_H AC‐H
AC_N AC‐N
GND FG
The provided connector is “20020517M031B01LF” of FCI vendor. The following table shows main
specificationofthisconnector.


