REMOTEUNITCeilMountInstallation

For horizontal installation, minimum separation distance of 130mm is recommended as shown in the
belowfigure.


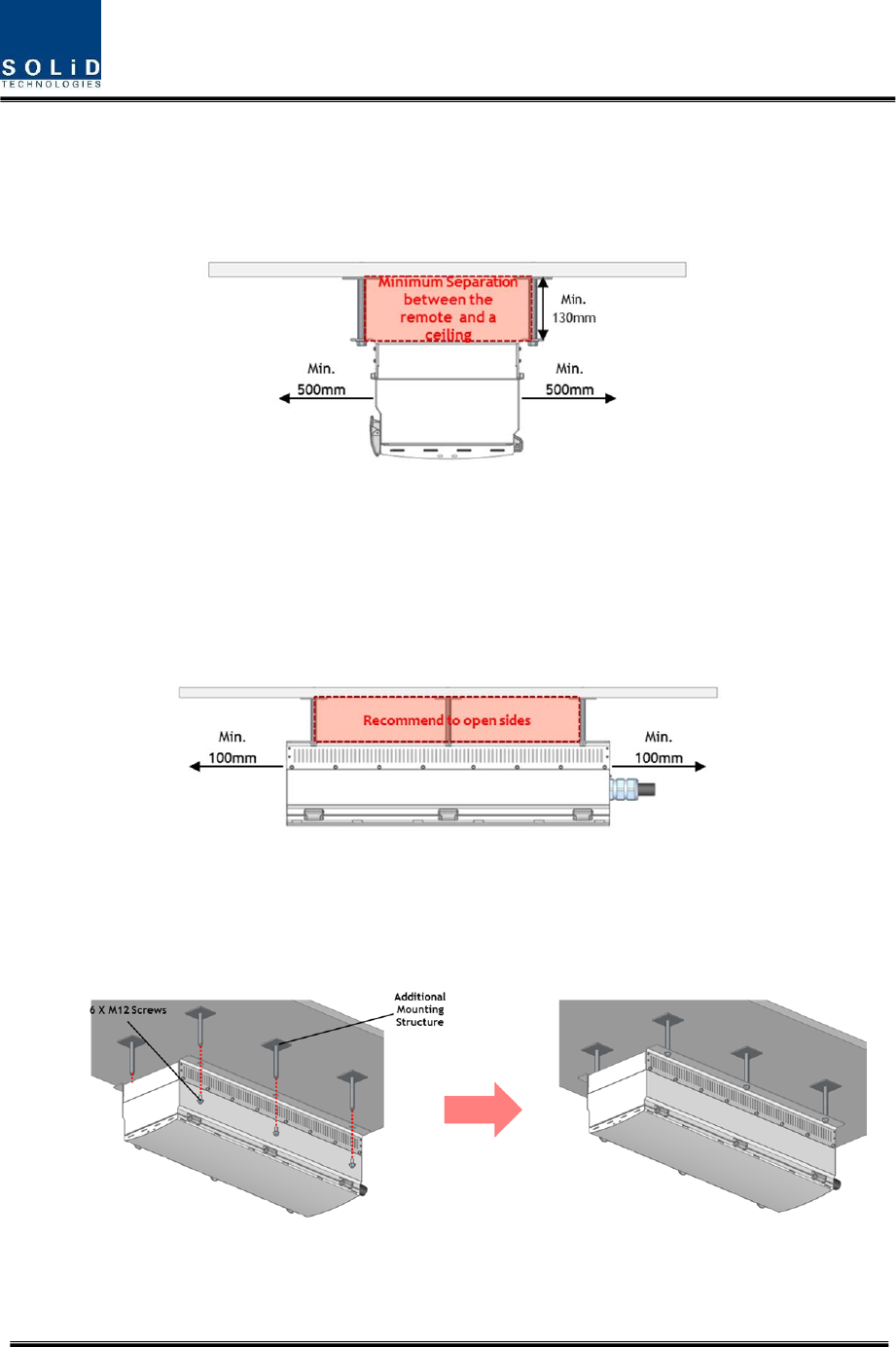

Figure4.3–HorizontalInstallation

Theinstallationclearancesecuressystemreliability.

Select the right location where the remote unit can be installed securely considering weight load
capacity,therewouldbeadditionalmountingstructures
canbeappliedasshowninthebelowfigure

Figure4.4–InstallationClearance

Mount remote unit to the mounting location using M12 screws. Different length and material type of
theM12screwscanbeselecteddependingonmountingcondition

Figure4.5–HowtoInstallRemoteUnit

