3.1 General

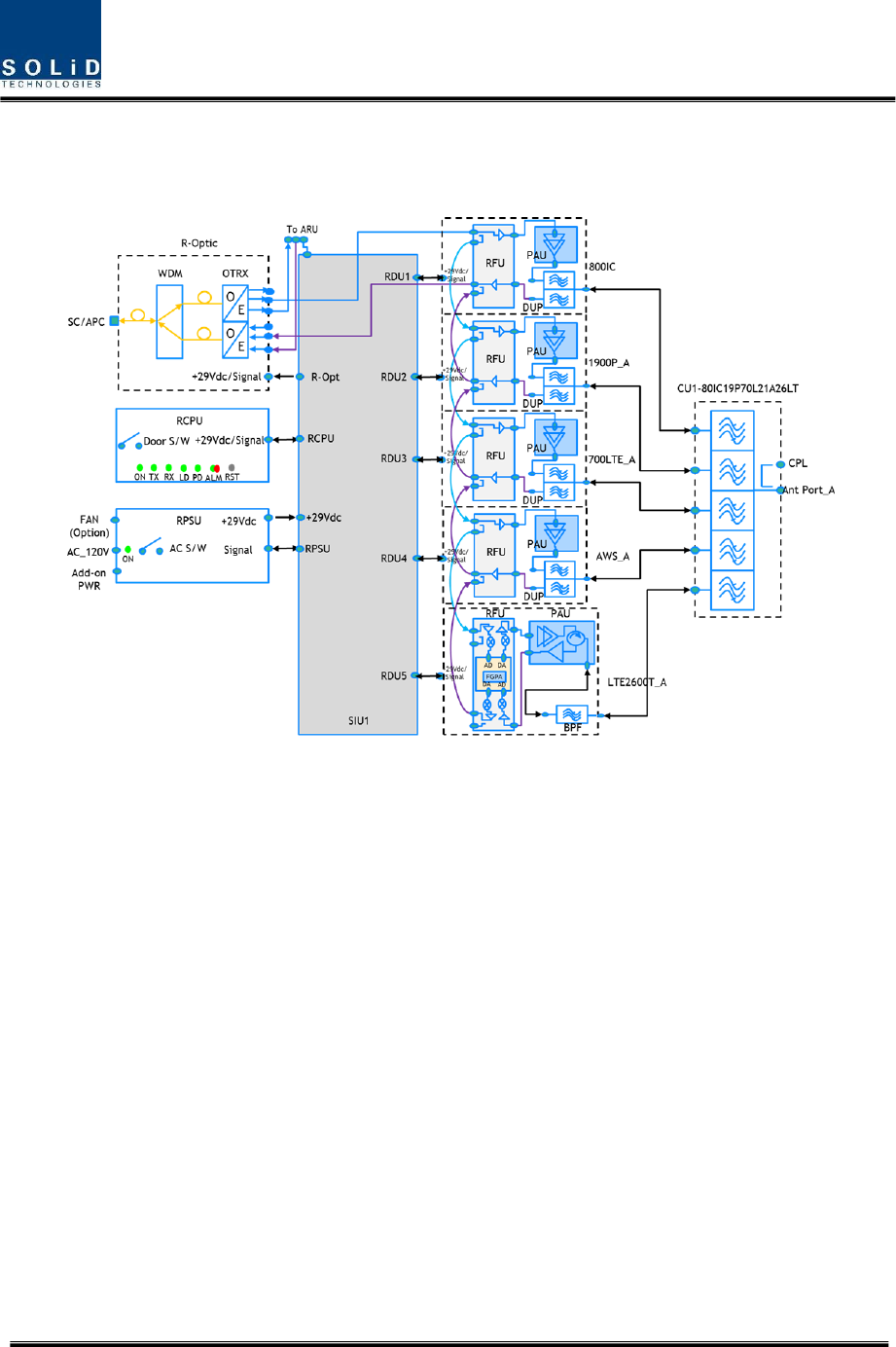

ThefollowingfigureshowstheblockdiagramofHERCULES‐SRemoteUnit.

Figure3.1–RemoteUnitBlock Diagram

Therearemanycomponents;
 R‐Optic:RemoteOpticalUnit
 RCPU:RemoteCentralProcessorUnit
 RPSU:RemotePowerSupply Unit
 RDU1‐5:RemoteDriveUnit
 CU:CombiningUnit


