ROUSetting
The MRU canbe interfaced with two RUs. One is an ARU whichis provided with an extracarrier
band.TheotherisaVHF+UHFRUwhichisprovidedwithpublicsafetyservicerequiredinthebuilding
code.
Through the GUI at the MRU, it queries the status and control of
 the MRU, the ARU and the
VHF+UHFRU


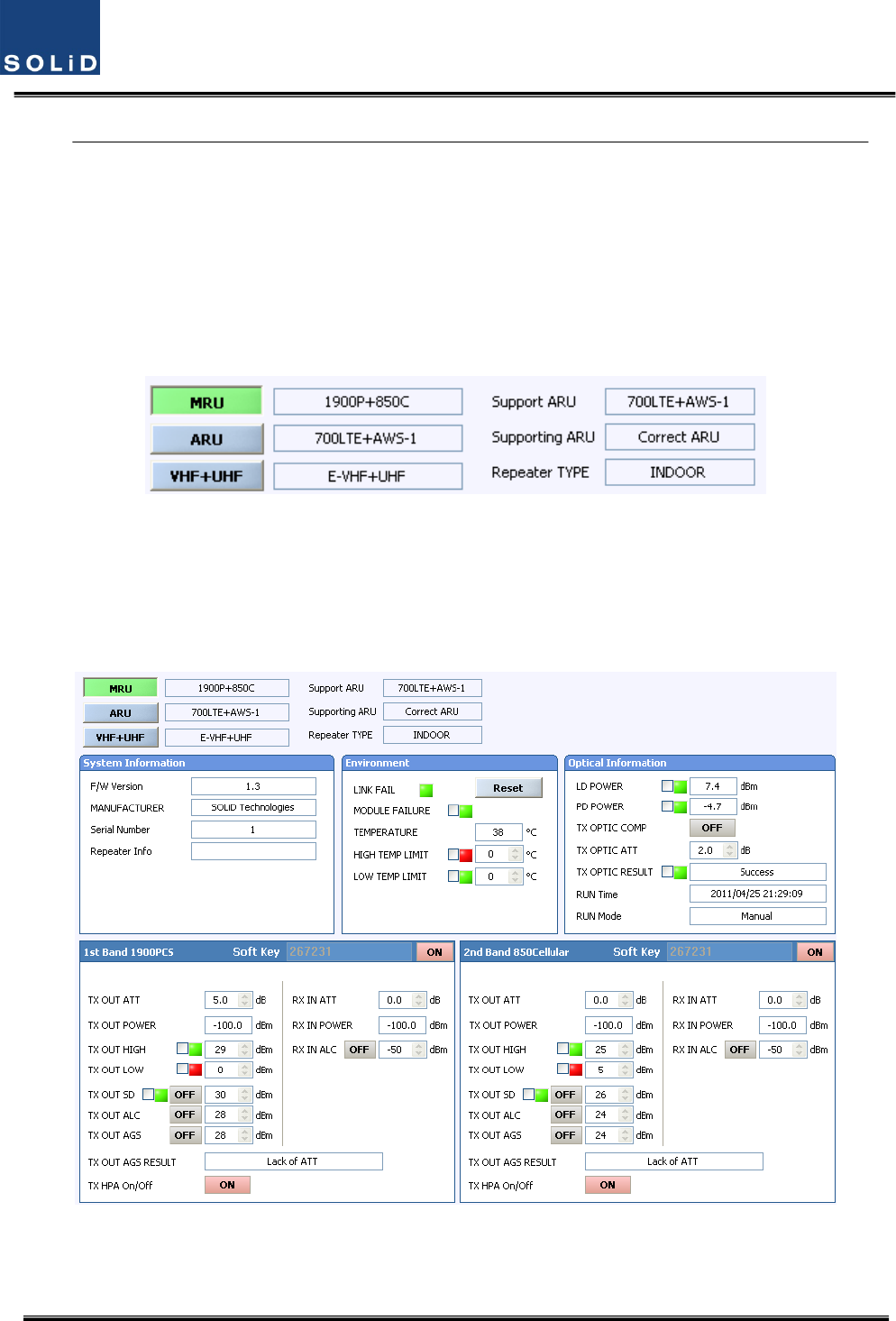

Figure6.13–ROUinformationassignment
ByclickingthemainmenuwhichisMRU,ARUandVHF+UHF,youcanqueryandcontroltheseunits

Set HPA of a corresponding RDU as “ON.” Use TX OUTPUT AGS function and set it as a desired
outputlevel.

Figure6.14–ROUMenuinformation

