The level of DOU’s Laser didoe is typically +1.5±1dBm. DOUs have various alarm such as LD Power
alarm,OverloadAlarmandPDalarms.
The level of Laser diode received from ROU/OEU is +7dBm±0.5dB.The level of Photo diode will be
displayedwithlossesrelatedtothelengthofopticalcablesand
insertionlossofopticalconnectors.
Ingeneral,thelevelofopticalPDPOWERshouldbe+6dBmto+2dBm±1.5dB.
Furthermore,theODUhasthefunctionofautomaticallycompensatingforopticalcableloss.
Initially, if BIU communicates with the lower Unit(OEU,ROU), the optical loss compensation is
automaticallyaffected.
Duringopticalcompensation,the
Resultwindowshows"Processing"andthenaresultvalue.There
arethreetypesofresultsasfollows:
A. Success:Theopticalcompensationisnormallycompleted
B. OverOpticLoss:Gene ratedopticallossis5dBoormore.
C. CommunicationFail:CommunicationwithROUisinpoorconditin.
The ATT foroptical compensation
 can work based on the numerical expression of 12‐2* (LD
POWER‐PDPOWER).OpticalcompensationcanbemadenotonlyintheODUbutalsointheROU.


6.2 ROUOverview

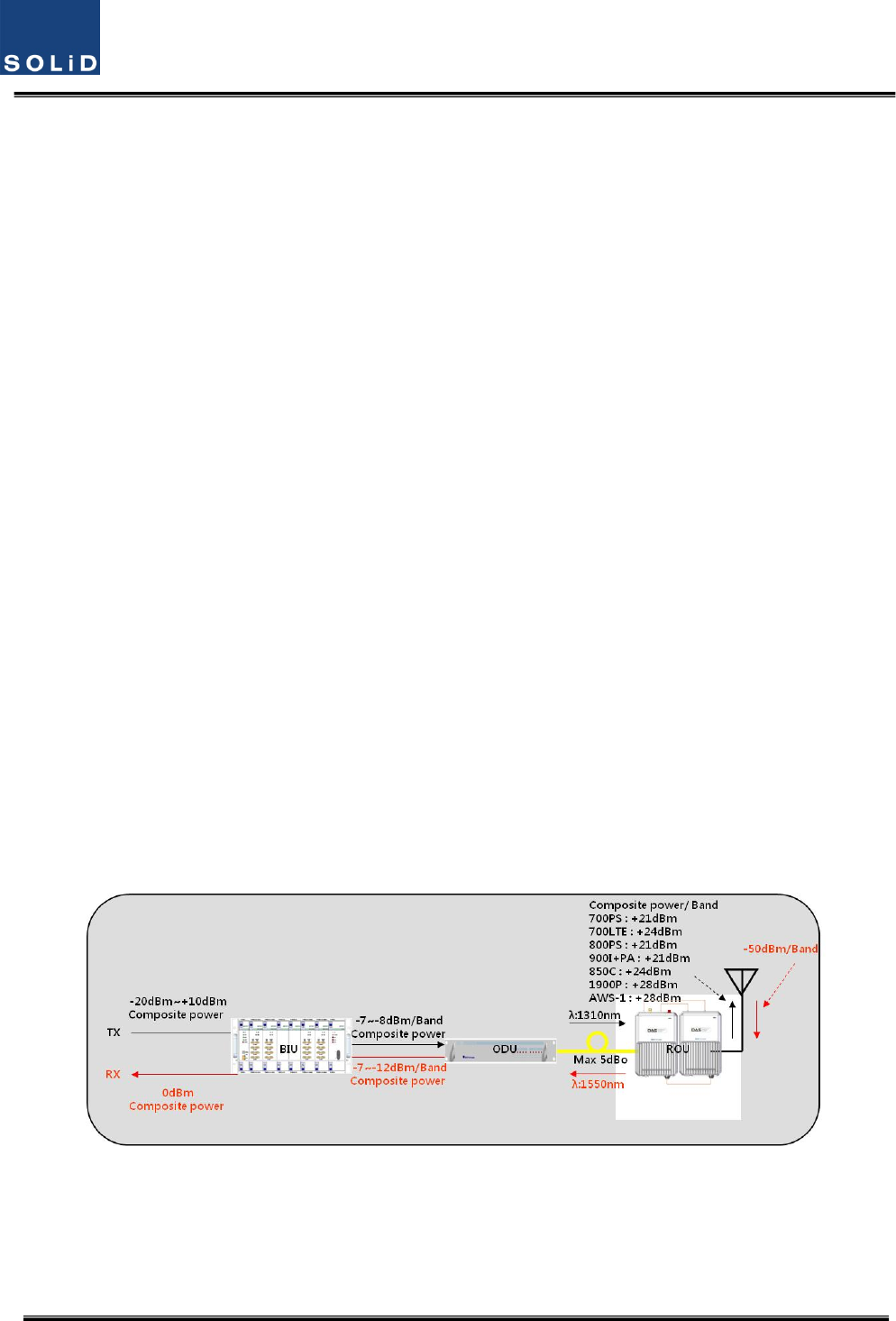

The figure below shows the SC‐DAS system link level (BIU‐ODU‐ROU). This section describes ROU‐
related information. The ROU receives various signals through optical modules. These  signals are
filtered only for corresponding signal band from the MFR/ARF module and amplified with a High
Power Amplifier. Then, the multiplexer combines
 the signals with others and sends them to the
antennaport.


Figure6.11–SC‐DASLinkbudgetforROU

