6.1.4 BIULogicSequenceDiagram
TheBIUcontrolstheoverallsystem,workingasastheheadendunitofanysystem.TheBIU
connectswithunitssuchasODU,OEUandROU.
Thetreehierarchyautomaticallydisplaysthecomponentsconnectedtothesystemand
communicatewithlowerunitswhilecollectingthestatusoftheunits.
The
menubelowshowstopologyforoverallunits.
BasictopologyforSC‐DAS
ConfigurationofBIU‐ODU‐ROU


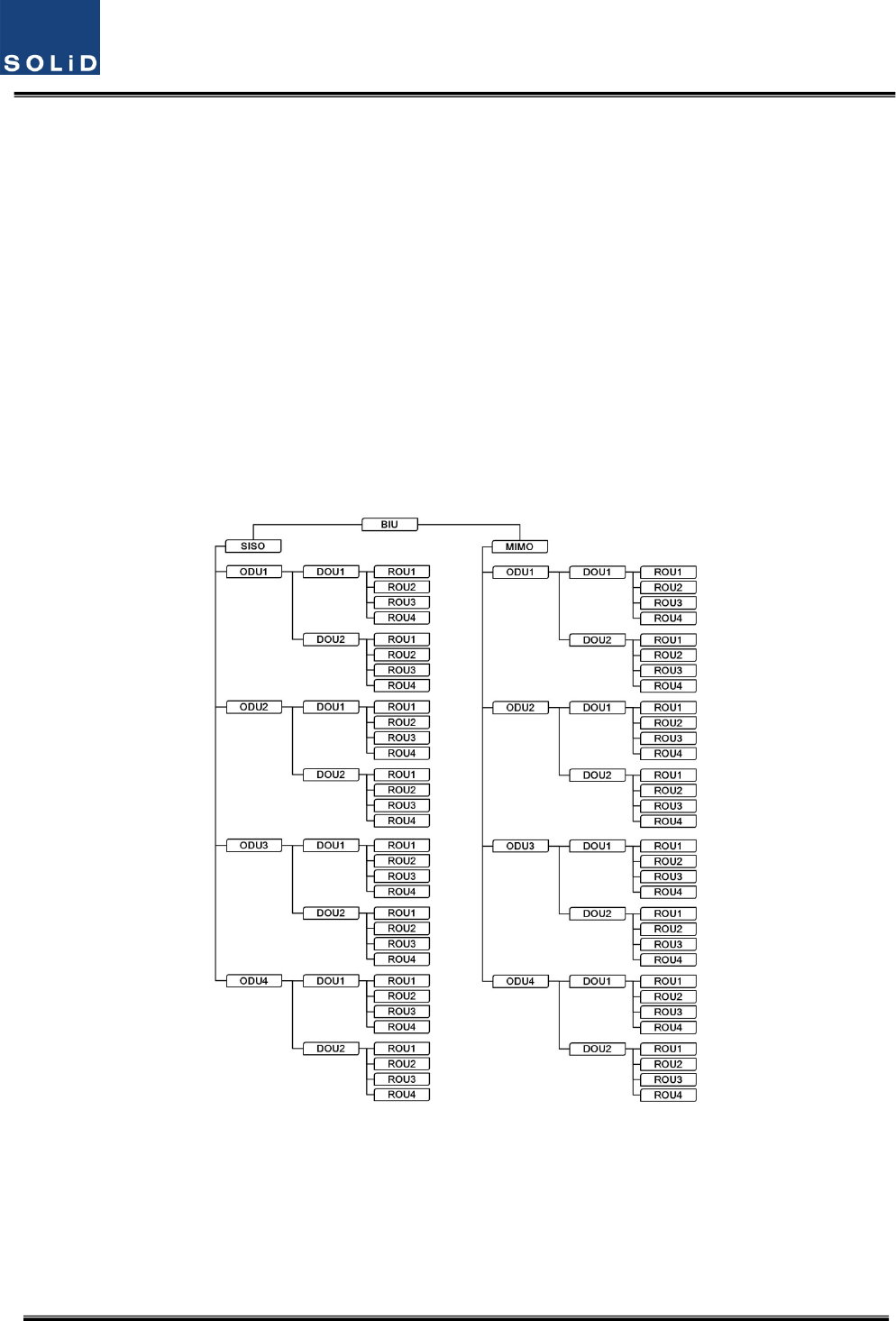

Figure6.7–ConfigurationofBIU‐ODU‐ROUforbasictopology
TheBIUhastwopaths:SISOandMIMO.Eachpathhascapabilitytoconnectupto4ODUs,
one ODU can be connected up to 8ROUs.Therefore, the number of ROUs per path is 32.
RegardingtheMIMOpath,OneBIUcanconnectupto64ROUs
