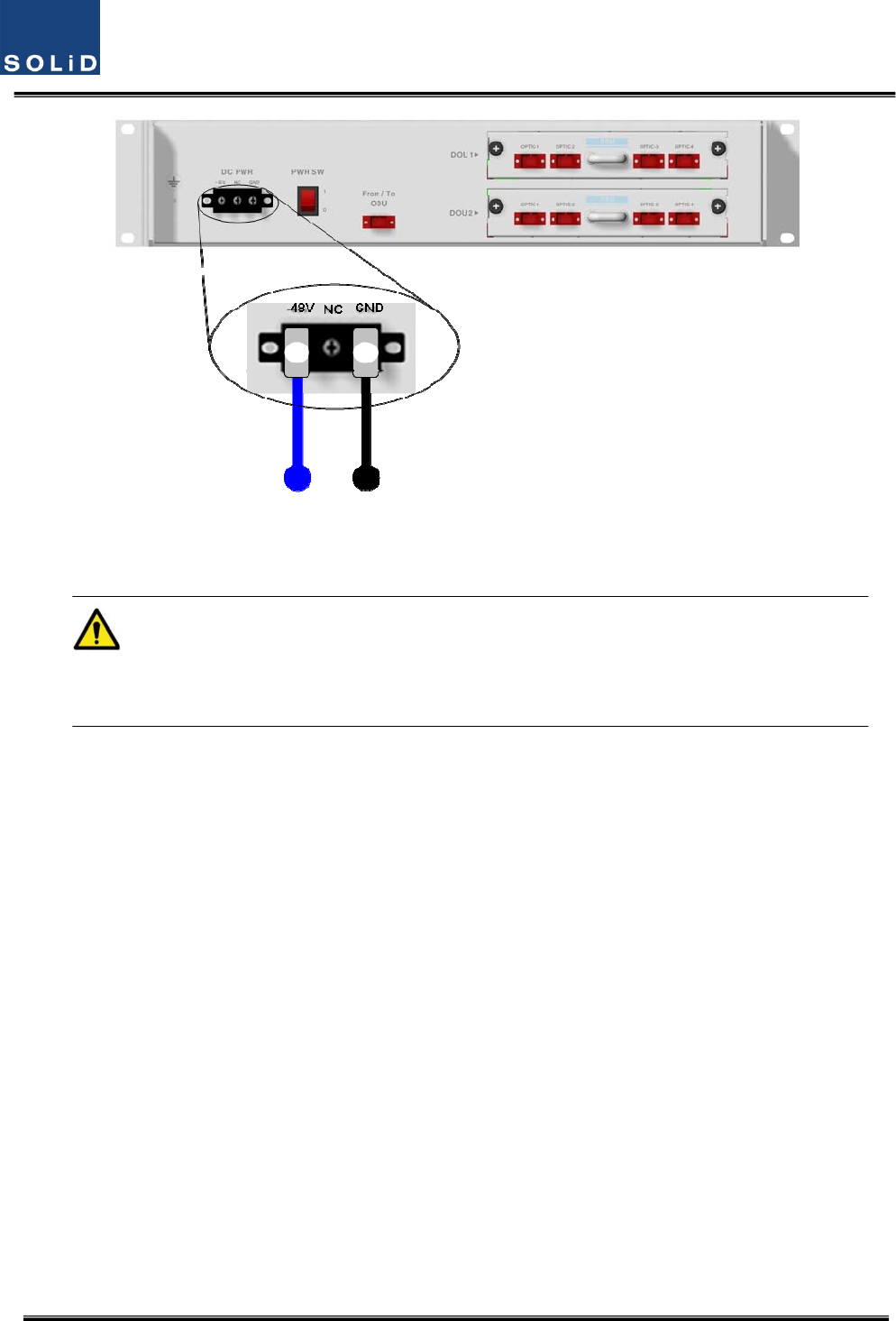

Figure5.26–OEUPowerinterfacediagram


 NotethatOEUdoesnotoperateifthe“+”terminalandthe“–“terminalofthe‐48Vpower
supplyarereversed.


5.4.3 OEUOpticCabling
TheOEUisconnectedwiththeupperODU. WiththeDOUinsertedinit, the unit is connected with
theROU.
HavingEWDMbuiltintheOEU,itmakestheRF‐opticalconversionofTXsignalsfromODUaswellas
theoptical‐RFconversionofRXsignals.Inaddition,theOEU
canbeequippedwithuptotwoDOUs.
One DOU supports four optical ports and one optical port can be connected with the ROU. With
WDM in the DOU, the unit can concurrently send/receive two different wavelengths (TX:1310nm,
RX:1550nm)throughonestrandoffiber.TheDOUhasSC/APCconnectors.
