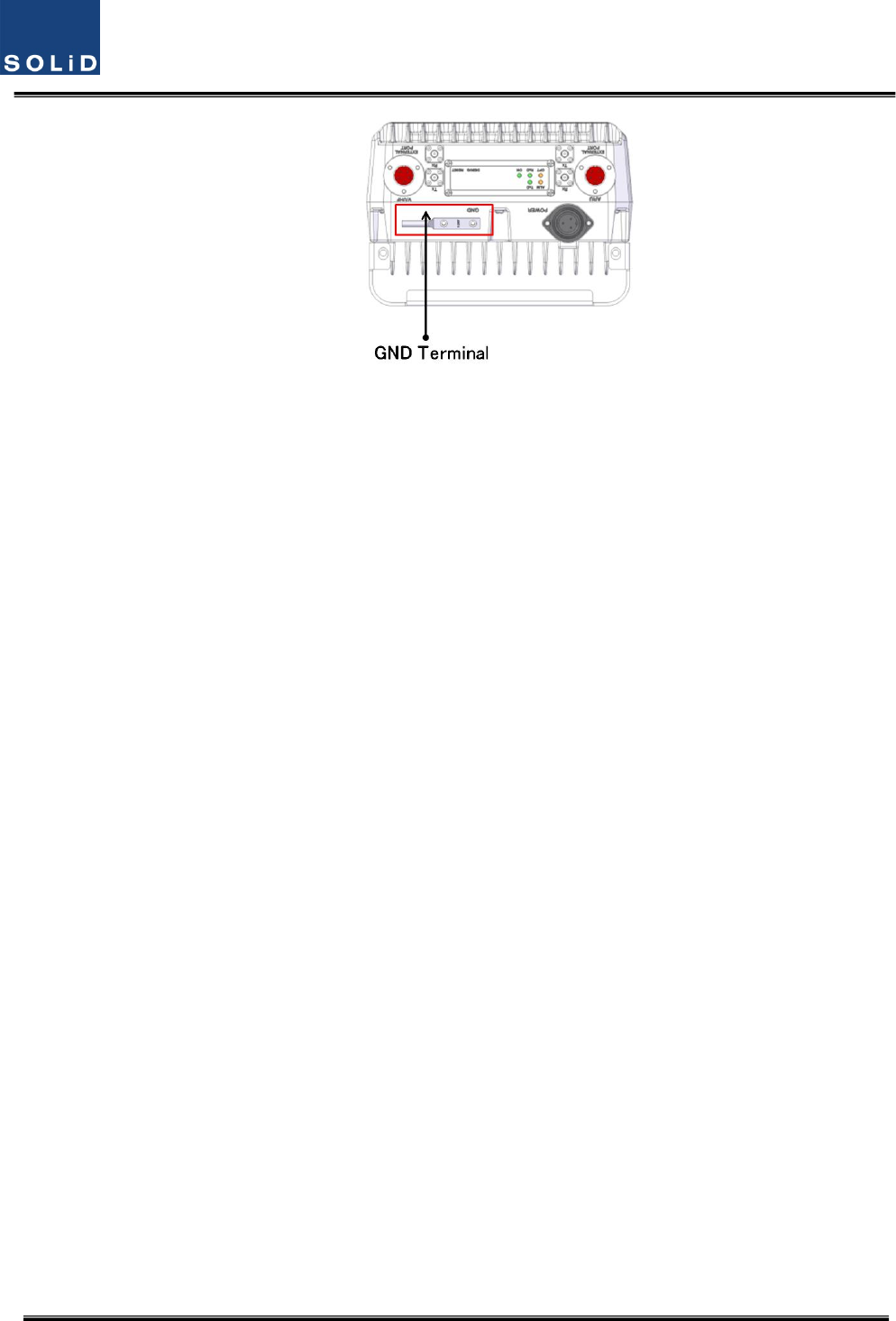

Figure5.24–ROUGNDPortview

- Take off the GND terminal port from the enclosure and connect to the ground cable.
Thenreconnectittotheenclosure
- The opposite end of the ground cable should connect to the communication GND of
building
- Thegroundlugis
designedmeetingtheSQ5.5standard

5.3.5 CoaxialcableandAntennaConnection
- The coaxial cables which are connected to DAS connect to antenna port of the ROU.
Before connection, check the VSWR of the coaxial cable using a SiteMaster to verify
whetheritiswithintolerance.
- TheReturnlossshouldbebetterthan15dBorVSWRshouldbebelow1.5:1.

- Makesuretheantennaconnectoristightenedproperlyandfreeofanydirtorinsects.
- TheantennaconnectedtotheROUisonlyforinbuildinguse.
- Only the MRU has an antenna port. The ARU transmits its signal through RF cable
connectedtoboththeMRUand
ARU

