5.3.3 OpticalCabling
TheMRUmakestheoptical‐RFconversionofTXsignalsfromuppertheODUandOEUaswell asthe
RF‐ optical conversion ofRX signals. The MRUhas one optical module init. As WDM isused in the
R_OPT module, two separate wavelengths (TX:1310nm, RX:1550nm) can be sent/received with
 one
fiberstrandatthesametime.TheMRUhasSC/APCconnectors.
Topreventthefiberinterfacefrombeingmarredwithdirt,itshouldbecoveredwithacapwhennot
installed.Fiberconnectorsshouldbecleanedalcohocoltoremovedirtbeforeinstallation.


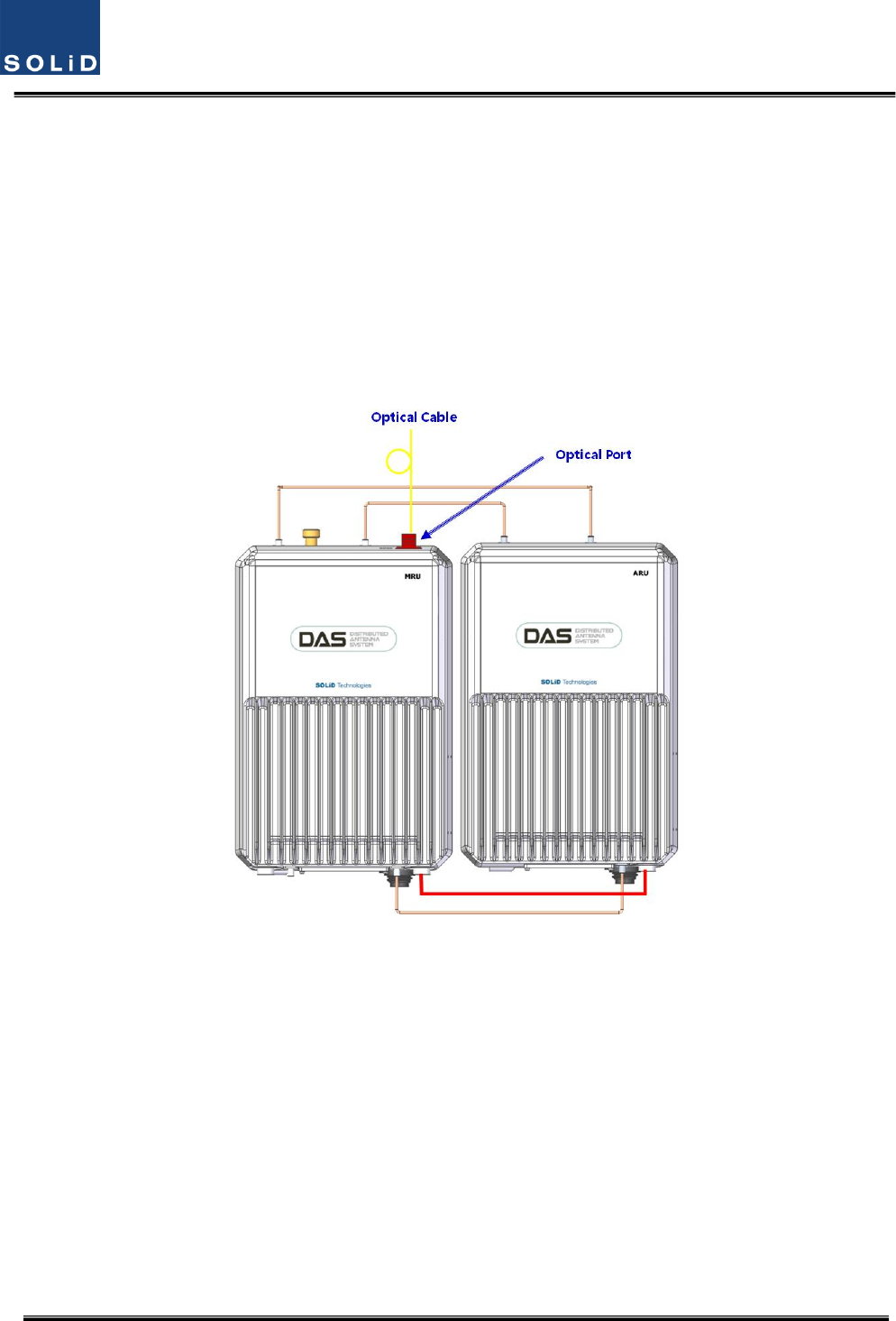

Figure5.23–ROUopticalPortview

OnlytheMRUhasopticalport;thereisnoopticalportontheARU
5.3.4 GNDTerminalConnection
TheROUhasoneGNDterminalportonbottomside,asshownbelow
