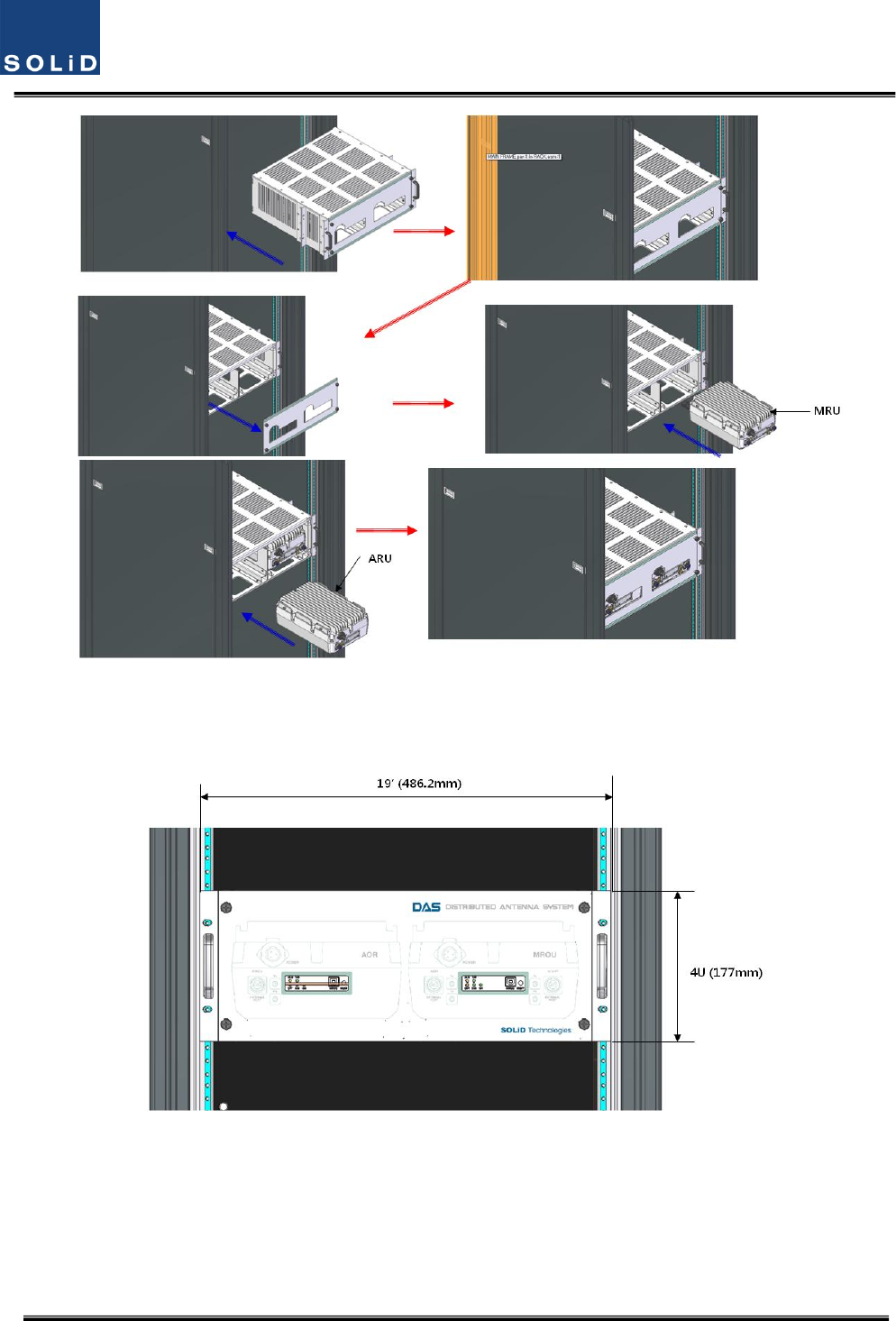

Figure5.20–ROUinstallationprocedureforhorizontalrack

Thefollowingshowsdimensionsofthemountingpointforhorizontalinstallation

Figure5.21–ROUinstallationdiagramforhorizontalrack


