Figure5.19–ROUinstallationdiagramforverticalrack


Type2:Horizontalinstallationontherack
For Horizontal installation, horizontal bracket is needed. Unlike vertical installation, the MRU is
mountedontherightoftheinstalledbracketfirstandthenARUisinstalledtotheleftofMRU
First,installbracketforhorizontalinstallationontherack
Second,openthe
frontcoverofhorizontalbracket
Third,mountMRUontherightsideoftheinstalledbracket
Fourth,mountARUontheleftsideoftheinstalledbracket
Finally,closethefrontcoverofhorizontalbracket

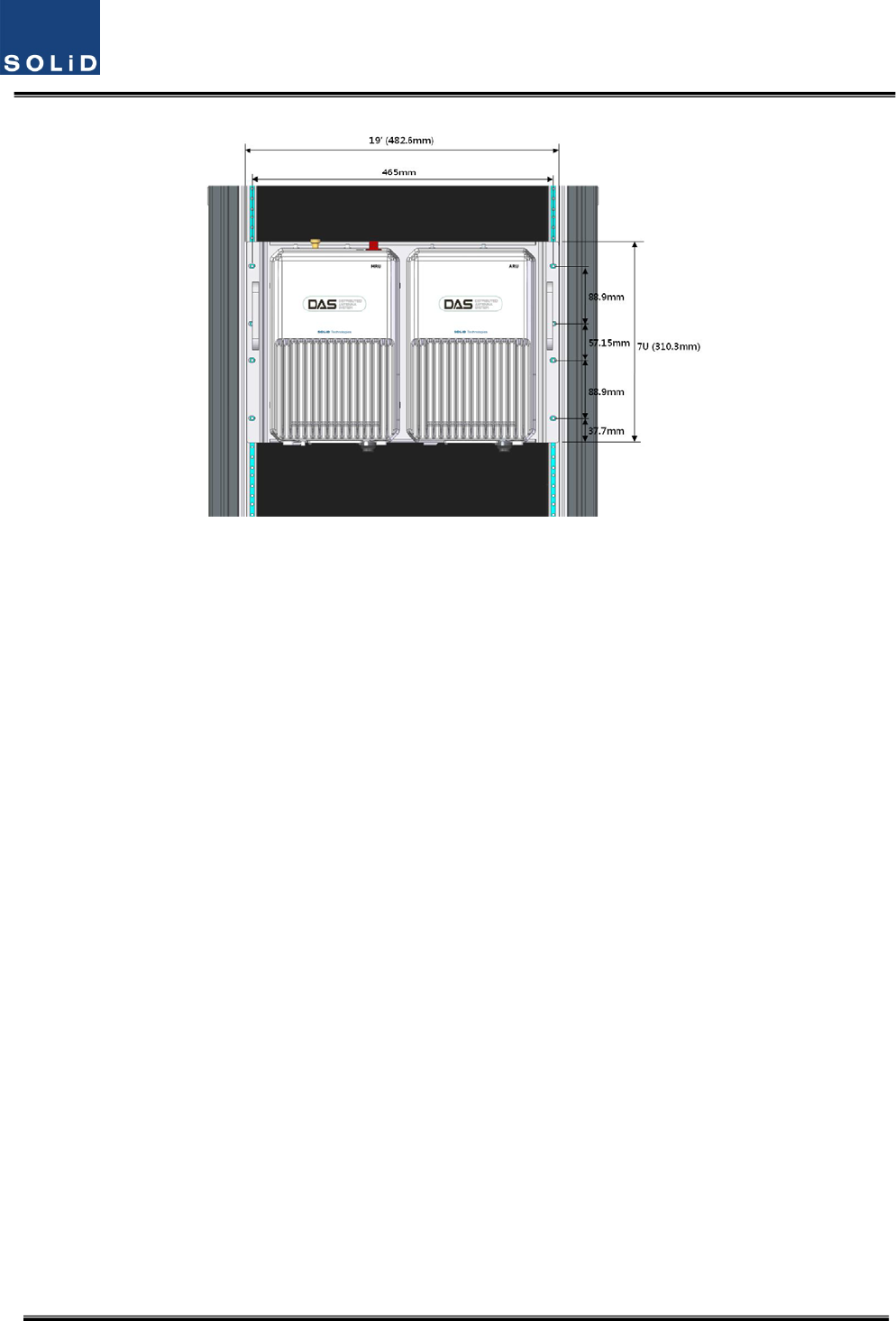

Completedinstallationdiagramisasfollows
