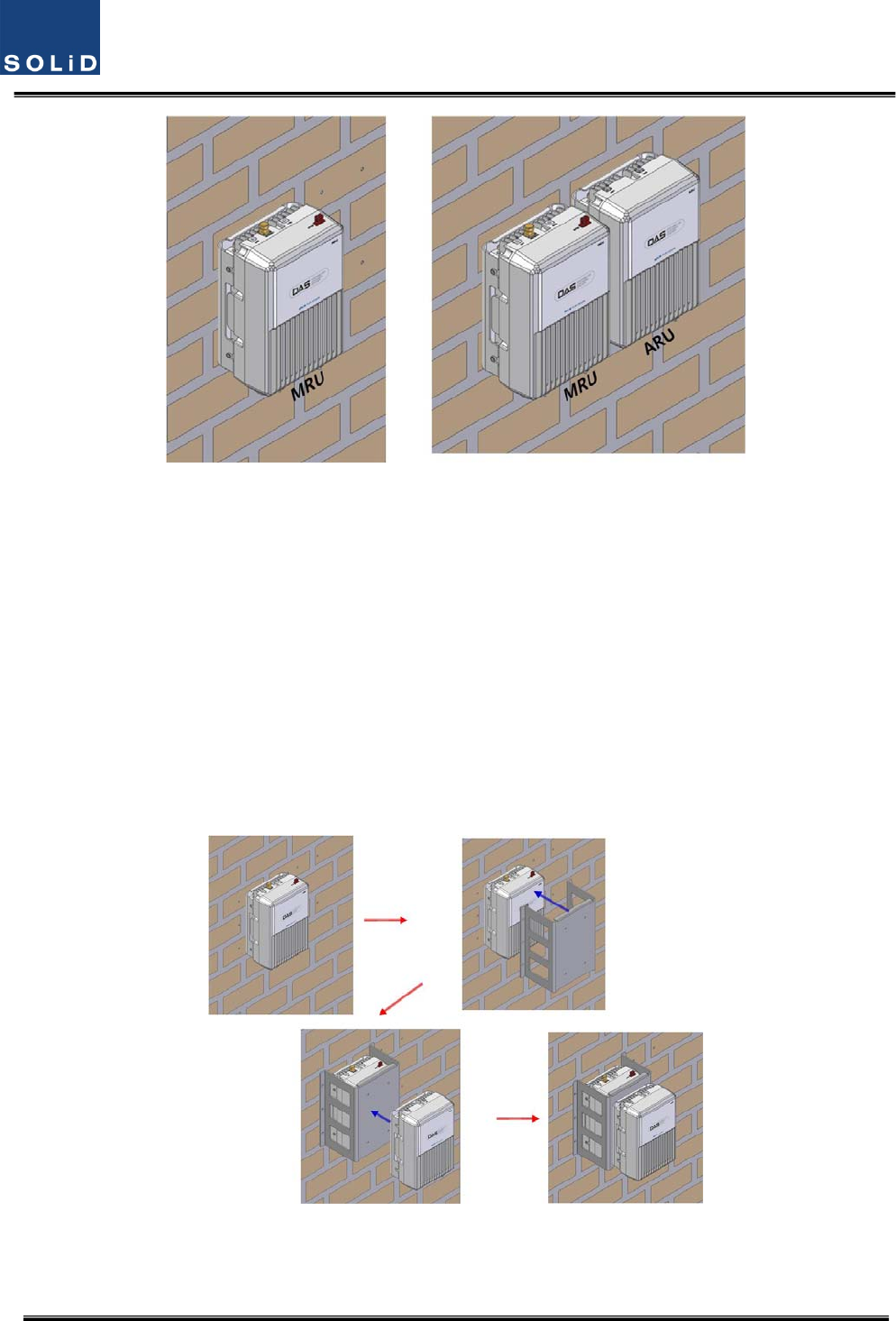

Figure5.15–ROUinstallationdiagramsidebyside

ForconnectingcablesbetweenMRUandARUeasily,theMRUshouldinstallonleftsideofARU.

Type2:stackedinstallation
IfspaceprohibitstheMRUandARUfrombeingmountedsidebyside,theunitscanbeinstalledin
astackedconfiguration.
Stackingtheunitrequiresaspecialbaracketforstackedinstallation
First,installtheMRUonthewall,theninstallthebracketforstackedinstallationontheMRU.Finally
installtheARUonthebracket.
Completedinstallationdiagramisasfollows

Figure5.16–ROUinstallationprocedureforstackedmounting

