3. System Connections
3.1 Port Description
SkyWay-XL100t radio unit has the following access ports:
• (1) 10/100/ Fast Ethernet + Power Connector
• (1) GPS RF port to be connected to a GPS antenna
The RJ45 connector is accessed at the bottom of the unit, through a multi-piece
waterproofing feed-through. If included, the RF Ports are accessed on the bottom of the unit,
which is shown below.

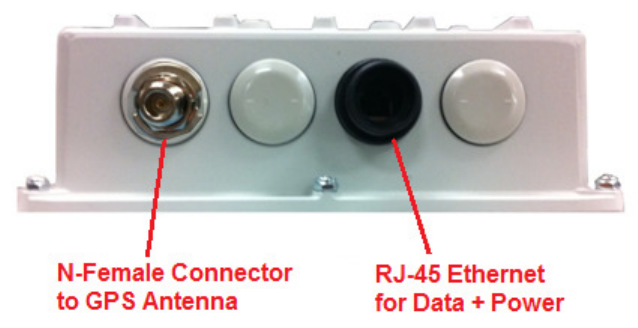

Unit Bottom View – physical interfaces shown
3.2 Connecting the SkyWay Unit to Network
Use the diagram below as a guide to cable your SkyWay test system using a PC or Laptop
and a pair of Cat5e/6 cables. An auto-MDIX feature eliminates the need for cross-over
cables.
