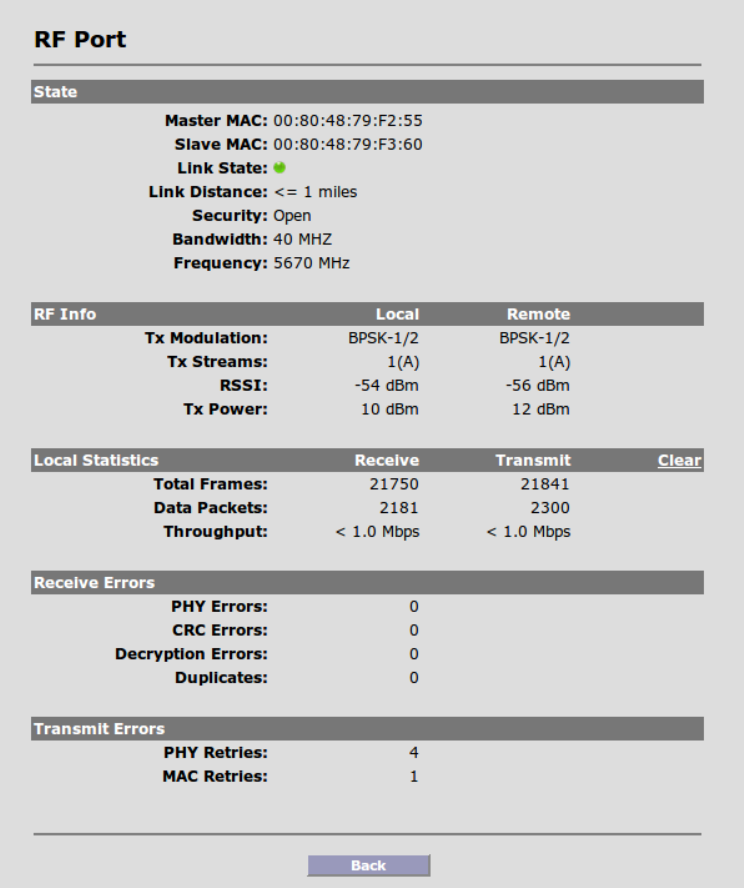

RF Info – This section shows values seen from local and remote unit. Values are displayed
from its own perspective. Local RSSI, for example, means the RSSI read from the local receiver.
Tx Streams – This indicates whether the unit is being operated with 1 data stream or 2 data
streams over the RF channel. The ACM operation is indicated by the designation of an ‘A’ in
parenthesis. Fixed operation is indicated by an ‘F.’
Local Statistics – These are values experienced by the local unit. Receive Column details
values at the local unit receiver and Transmit Column details values at the local unit transmitter.
