User Manual

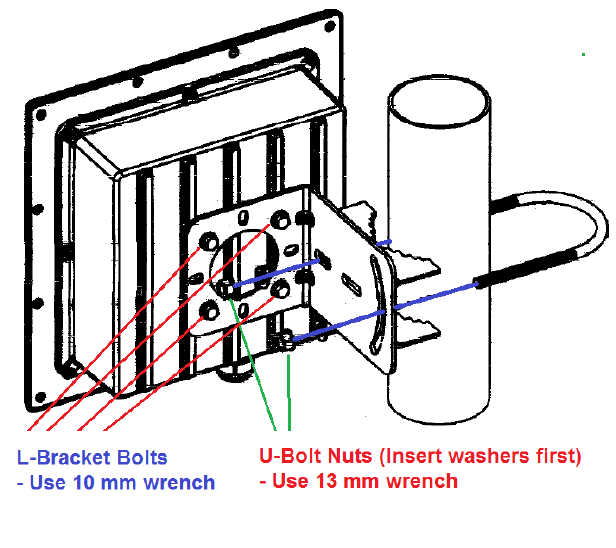

Azimuth alignment – Rotate the enclosure assembly in the horizontal direction

Vertical alignment - The L-bracket has a curved groove which can be used to tilt the enclosure

up or down.

Once the alignment is complete, tighten the bolts and nuts firmly.

5.3 Mounting of Separate Antennas

Tower or mast mounting of the antenna should proceed according to the antenna

manufacturer’s guidelines.

For interfacing to the Solectek radio, the following should be considered:

• To minimize loss, only short lengths of high quality, LMR-400 (or equivalent) RF coax

cables should be used.
