The installation steps will be shown in the next section.
Tools necessary for tightening bolts and nuts are:
• 10mm wrench for bolts to fasten the L-bracket to the radio enclosure
• 13mm wrench for nuts to tighten U-bolt nuts.
5.4 Unit Mounting
The final installation step involves mounting your SkyWay radio to an outdoor mast.
Refer to the following diagram to perform the installation steps:

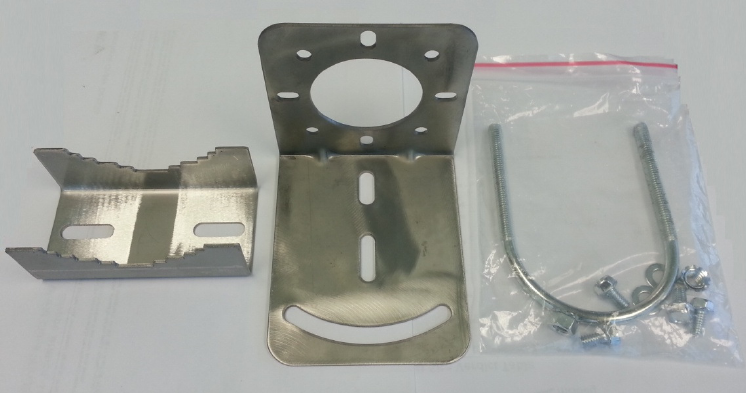

• Fasten the L-bracket on the back of the radio enclosure. The hole patterns are
symmetric and you can rotate the enclosure by 90 degrees before installing the L-
bracket for establishing the radio link with horizontal polarization.
• Using the step bracket and U-bolt, fasten the L-bracket to the mast.
