11. Verifying Operation

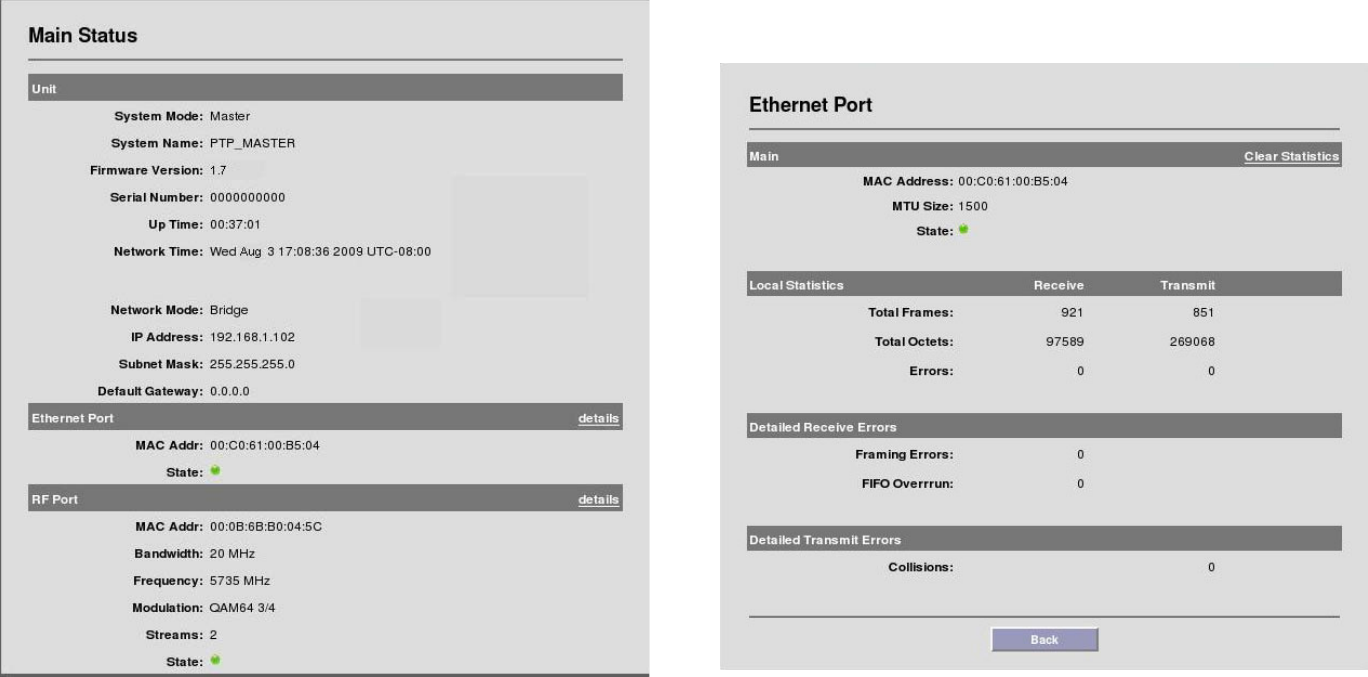

The basic status of the unit can be viewed in the Main Status screen:
This screen updates periodically and thus displays current field values.
Navigate to the Configuration screen if setting changes are necessary.
Three noteworthy items:
Up Time The elapsed time that the unit has been running since the last reboot
or power cycle.
MAC Address The MAC address of the local unit.
RF Port Link State The link state has two values.
Green – An RF link has been established
Red – an RF link is NOT established.
Each of the ports also has its own, detailed status screen. For the Ethernet Port
status, navigate to the details button located on the far right side. The screen
below is typical:
MTU Size The maximum datagram size that the system is able to transmit.
Note that this refers to Ethernet payload not total Ethernet frame size.
State: There are two states, Green – Port Up. Red – Port Down.
Total Frames: Total number of frames received and transmitted by the
Ethernet port.
Total Octets: Total number of octets (bytes) received and transmitted by the
Ethernet port.
