User's Guide

52
To c o n n e c t d i r e c t l y
to a administration
console:
1. Connect the console cable’s 6-pin connector to the SkyWay console port. Plug in
and lock clockwise.
2. Route the cable to the console, being sure to create a drip loop.
3. Connect the cable at the opposite (indoor) end of the console cable (DB-9 con-
nector) to the RS-422 converter, then to the serial communication port on the
console terminal or terminal emulator.
To c o n n e c t t o a
dedicated modem
and data line:
1. Connect and route the console cable as described above, except that you will con-
nect the cable to a modem, rather than the terminal or terminal emulator.
2. Connect a standard phone cable from the modem to the dedicated data line wall
jack. For more information on configuring the modem and accessing the SkyWay
remotely, see “Accessing the SkyWay Bridge/Router” on page 22.
www.solectek.com

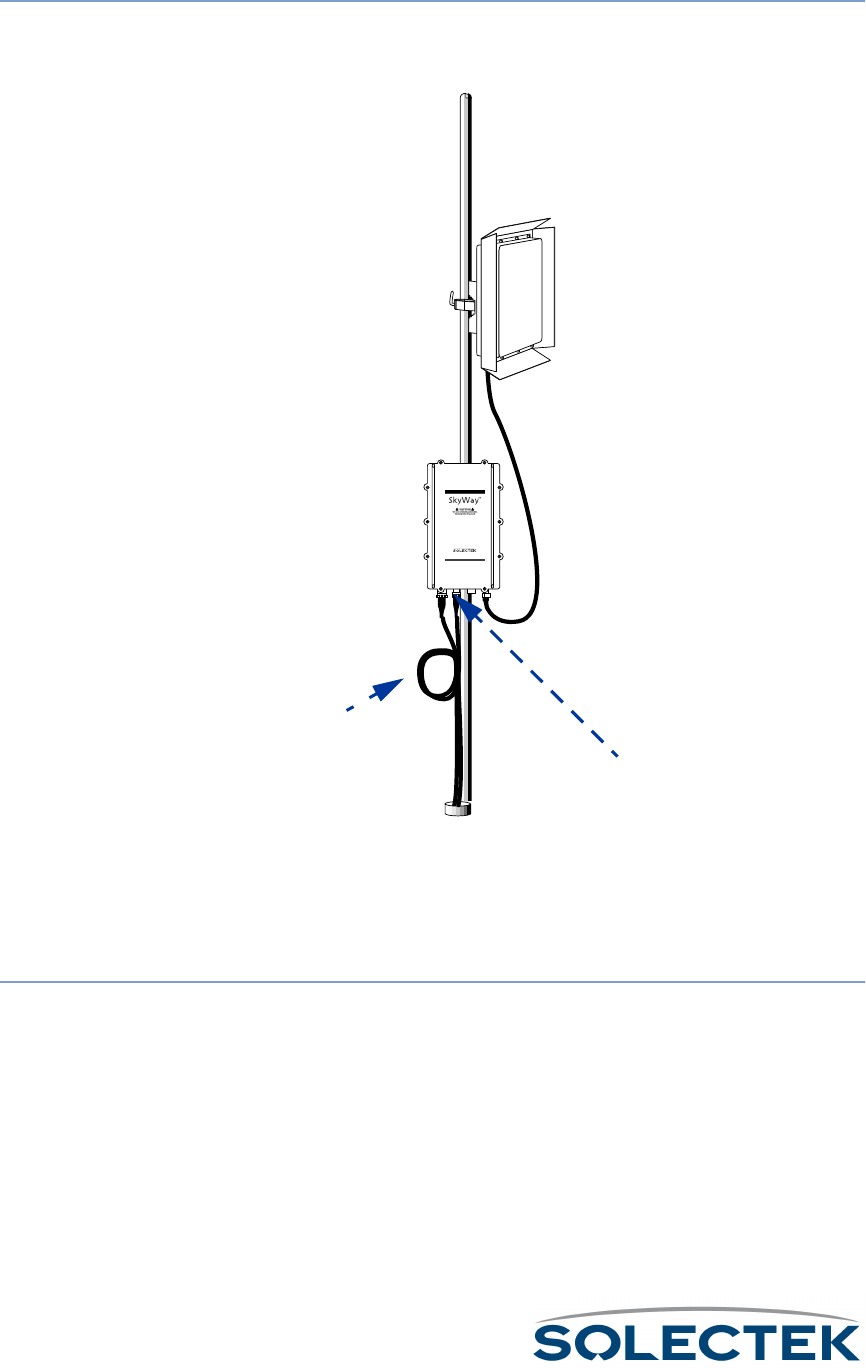

Administration Console
Administration ConsoleAdministration Console
Administration Console
port
portport
port
Drip loop and
Drip loop andDrip loop and
Drip loop and
Cable slack
Cable slackCable slack
Cable slack
