Connecting to Power
SkyWay requires DC power to operate. Solectek supplies an AC-to-DC converter
and a weather-rated DC power cable.
To c o n n e c t S k y Wa y
to power:
1. Connect the power cable’s 3-pin connector to the SkyWay power port. Plug in
and lock clockwise.
2. Connect the opposite (indoor) end to the supplied AC/DC converter.
Note: For extra power protection, plug the AC power cord into a UPS (200 W
minimum).
www.solectek.com

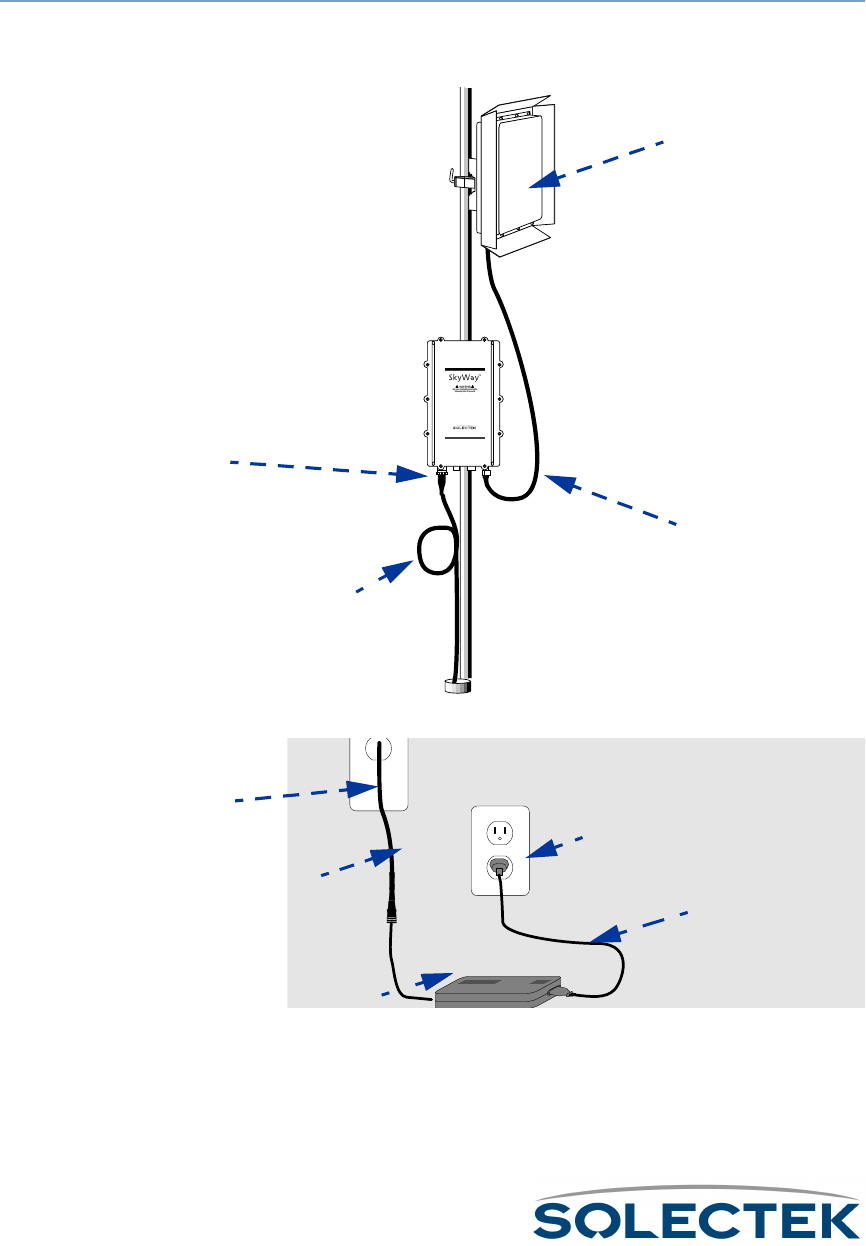

Power port
