User's Guide

Connecting Cabling
49
Connecting an Antenna
The LMR-400 RF cable connects the SkyWay with the antenna above it on the mast.
To connect an RF
cable:
1. Making sure the threads are properly aligned, tighten the cable’s connector bolt
snugly over the SkyWay’s RF connector port using a 13/16 in wrench. Hand-
tighten another 1/4 turn to lock it in place.
2. Similarly connect the other end of the RF cable to the antenna’s connector.
Note: Allow sufficient slack in the cable for a maximum turning radius of 1 ft.
3. Seal the connections to both the antenna and the SkyWay with “Coax Seal”
(P/N 10702) to prevent water entry.
www.solectek.com

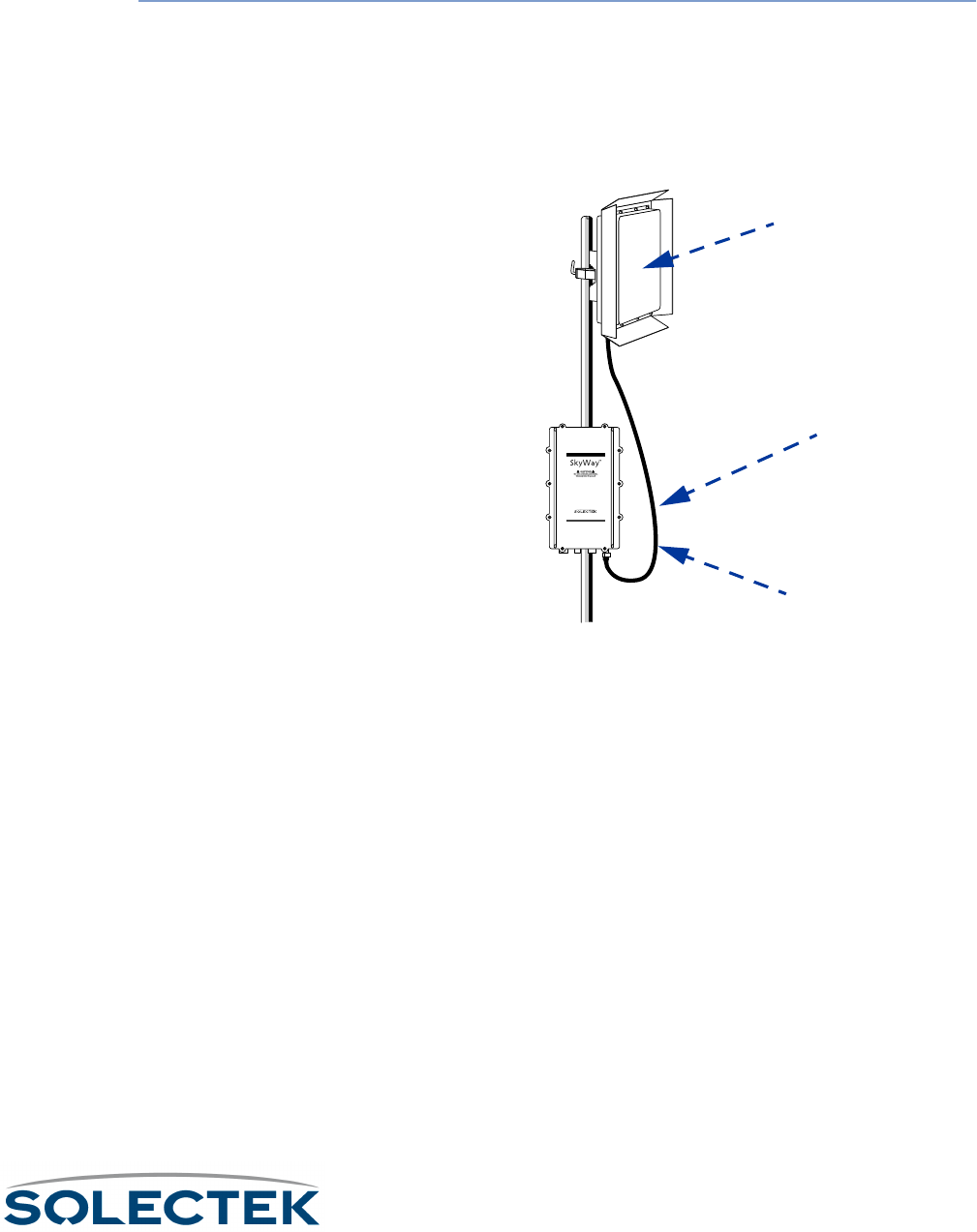

Slack for 1 ft turning radius
Slack for 1 ft turning radiusSlack for 1 ft turning radius
Slack for 1 ft turning radius
Antenna
AntennaAntenna
Antenna
LMR-400 cable
LMR-400 cableLMR-400 cable
LMR-400 cable
