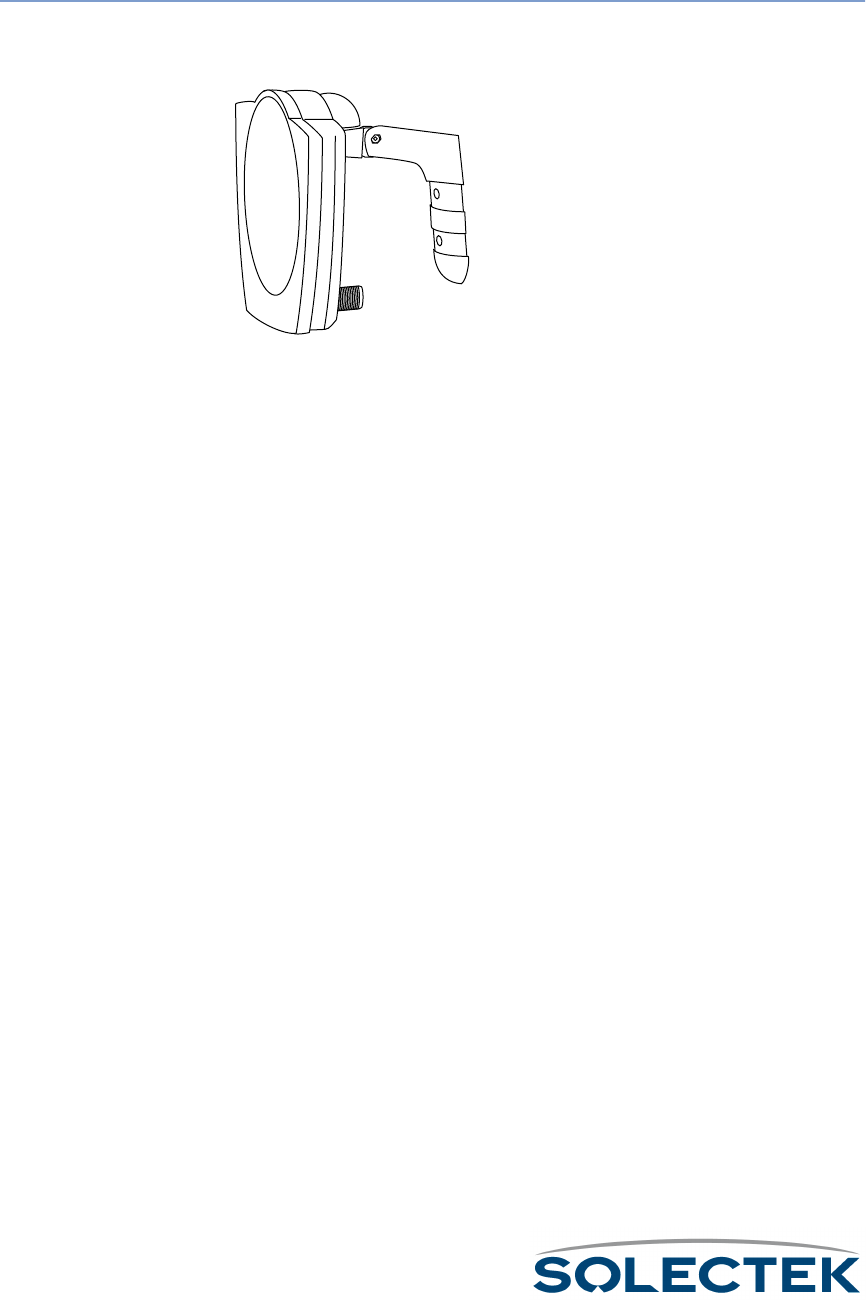

7002801: 8 dBi Indoor/Outdoor Patch Antenna
Note: This antenna is designed to be used as a bridge between two networks or for point-to-
point communications in the ISM band (2.4 GHz) only.
Specifications
Frequency 2.4000 to 2.4835 GHz
Net Gain 8.0 dBi
3dB horizontal beam width 60 °
3 dB vertical beam width 60 °
Front to Back ratio 25 dB
Polarity Linear
Cross polarity rejection n/a
VSWR (Average) 1.5:1
Impedance 50
Ω
Connector N female
Rated wind velocity 125 mph (201 kph)
Wind loading @ rated wind velocity 20 lbs (9.072 kg)
Elevation adjustment n/a
Size 4.77 in x 1.14 in x 6.25 in
(121.2 mm x 29 mm x 158.8 mm)
Weight 1.5 lbs (.68 kg)
Radome UV stabilized
Mounting hardware screw mount base, snap-in radome
