222

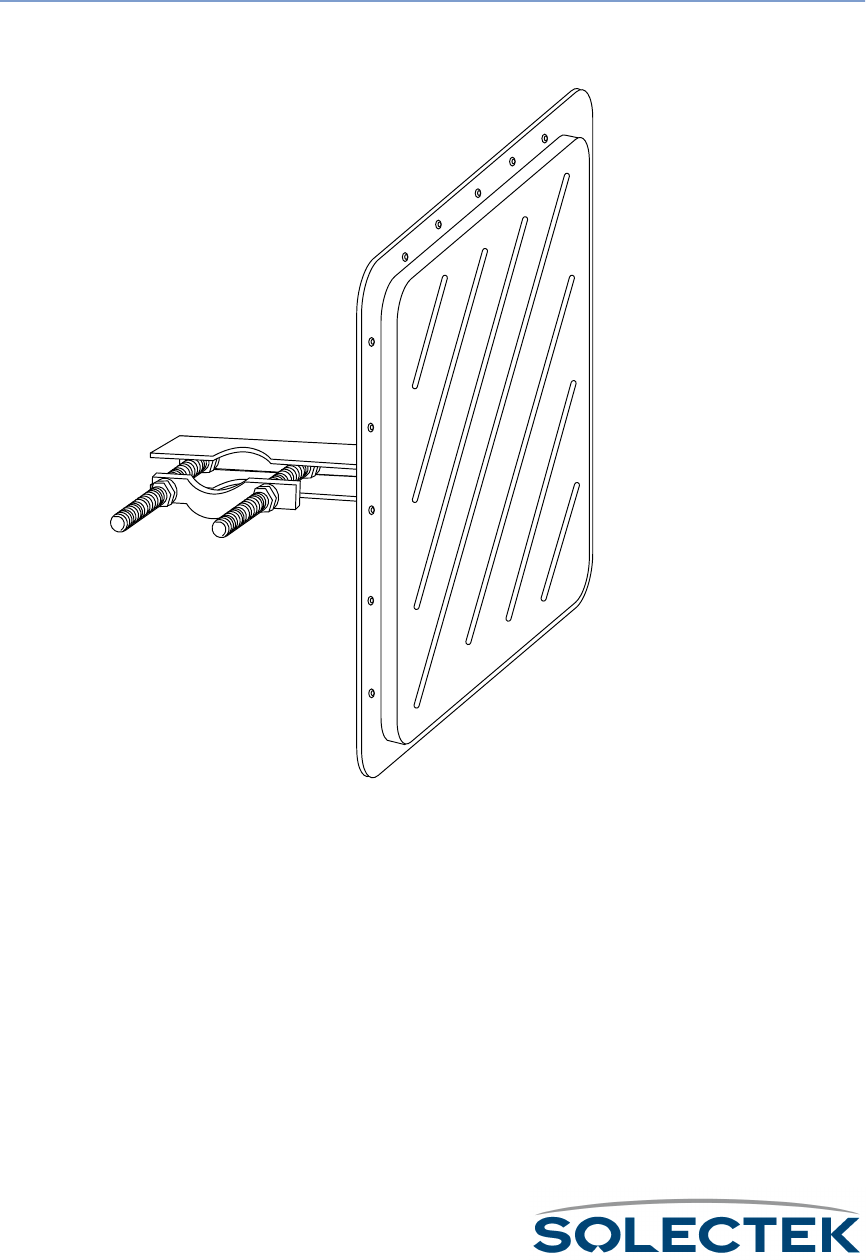

7002701: 22 dBi Outdoor High gain Flat Panel
Directional Antenna
Note: This antenna is designed to be used as a bridge between two networks or for point-to-
point communications in the ISM band (2.4 GHz) only.
Specifications
Frequency 2.4000 to 2.4835 GHz
Net Gain 21.2 dBi
3dB Beam width (E. Plane) 10 °
Front to Back ratio > 32 dB
Polarity Vertical (default) or horizontal; field
changeable
Cross polarity rejection > 30 dB
