220

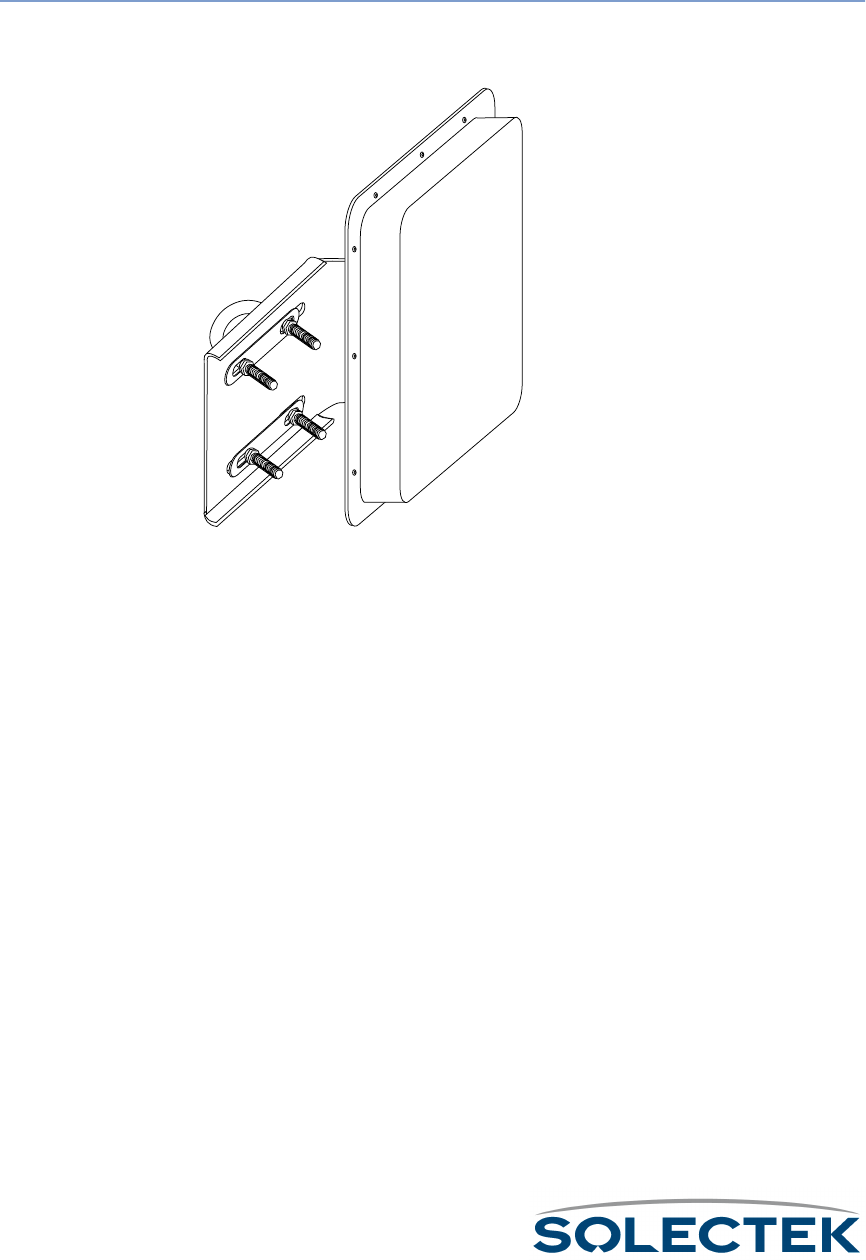

7002601: 17 dBi Outdoor Flat Panel Directional
Antenna
Note: This antenna is designed to be used as a bridge between two networks or for point-to-
point communications in the ISM band (2.4 GHz) only.
Specifications
Frequency 2.4000 to 2.4835 GHz
Net Gain 17.0 dBi
3dB Beam width (E. Plane)
Front to Back ratio
Polarity Vertical (default) or horizontal; field
changeable
Cross polarity rejection
VSWR (Average) 1.5:1
Impedance 50
Ω
Coaxial pigtail length (to ODU)
Rated wind velocity
Wind loading @ rated wind velocity
Elevation adjustment
