216

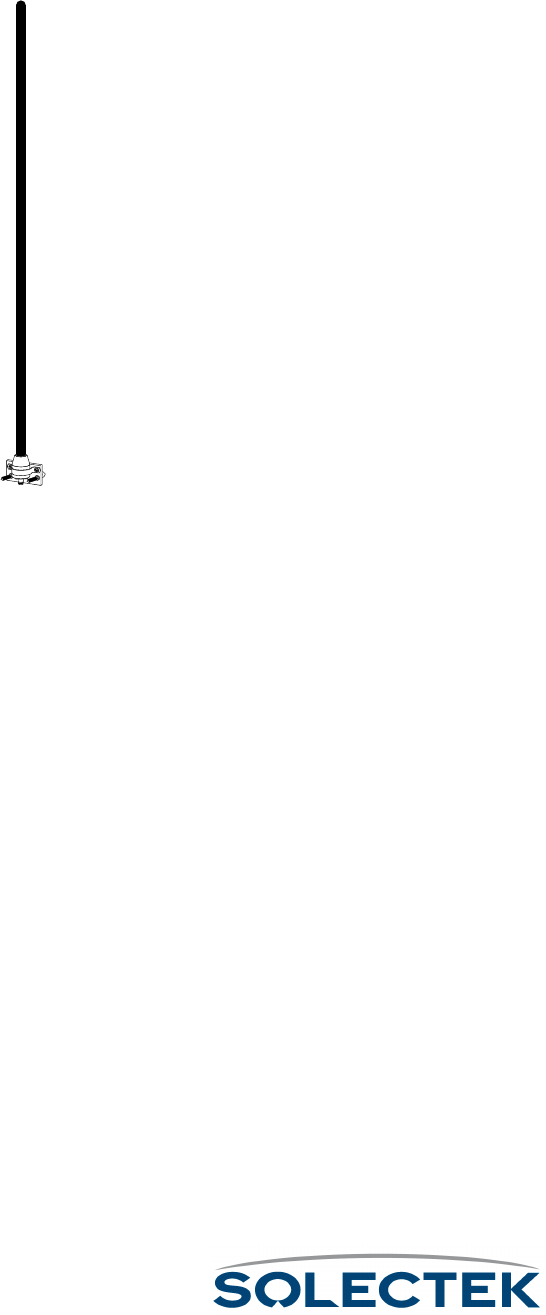

7002401: 11 dBi Omni Directional Antenna
Specifications
Frequency 2.4000 to 2.4835 GHz
Net Gain 11.0 dBi
3dB Beam width (E. Plane)
12
o
Front to Back ratio N/A – Omnidirectional
Polarity Vertical, fixed
Cross polarity rejection n/a
VSWR (Average) 1.5:1
Impedance 50
Ω
Coaxial pigtail length (to ODU)
Rated wind velocity 135 mph (217 kph)
Wind loading @ rated wind velocity 4.0 lbs (1.81 kg)
Elevation adjustment n/a
Size 37 in l x .7 in dia.
(939.8 mm l x 17.78 mm dia.)
Weight 0.88 lbs (0.4 kg)
