To connect ACto ground:

1. Insert the grounding cable through the AC drill guide.

2.

Connect the cable to the equipment grounding bus-bar. Tighten using a torque of

4.0 N*M / 35 lb-in.

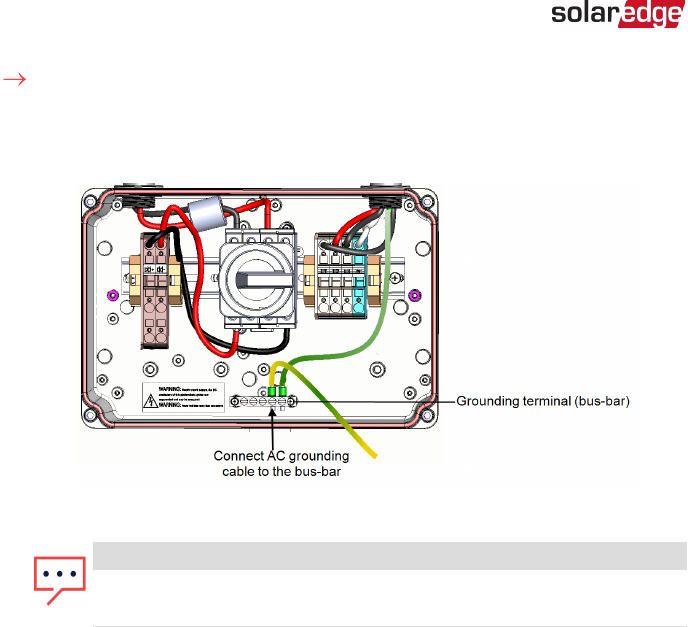

Figure 20: ACgrounding in the Safety Switch

NOTE

The Safety Switches are equipped with different types of terminal blocks.

The above figure is one example of the available Safety Switches.



-Three Phase System Installation Guide MAN-01-00002-4.3

46 Connecting the AC Grid to the Safety Switch
